Product Details
Manufacturer:
ABB
Model:
E 93/50
Warranty:
Origin:
Romania
Technical Specifications
- Suitable For:E 90
- Suitable for Product Class:Fuse holders
- Rated Voltage (Ur):
- acc. To IEC 690 V
- acc. To UL 690 V
- Rated Operational Voltage:AC-20B 690 V
- Rated Insulation Voltage (Ui):1 kV
- Rated Frequency (f):50/60 Hz
- Power Loss:at Rated Operating Conditions per Pole 5 W
- Number of Poles:3
- Number of Protected Poles:3
- Tightening Torque:3...3.5 N·m
- Utilization Category:Connecting and disconnecting under no-load conditions - occasional actuation (AC-20B)
- Lock Type:Padlockable
- Mounting Type:DIN rail
- Sealing Type:Sealing Wire
- Material of Conductor:Copper
- Options Provided:No
- Recommended Screw Driver:Pozidriv 2
- Connecting Capacity:
- Rigid 2.5…25 mm²
- Rigid Stranded|2.5…35 mm²
- Fuse Size:14x51 mm
- Operating Humidity (RHamb):max. 90% with temp. +20 °C|50% with max. temp. +40 °C
- Rated Operational Current AC (Ie):50 A
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

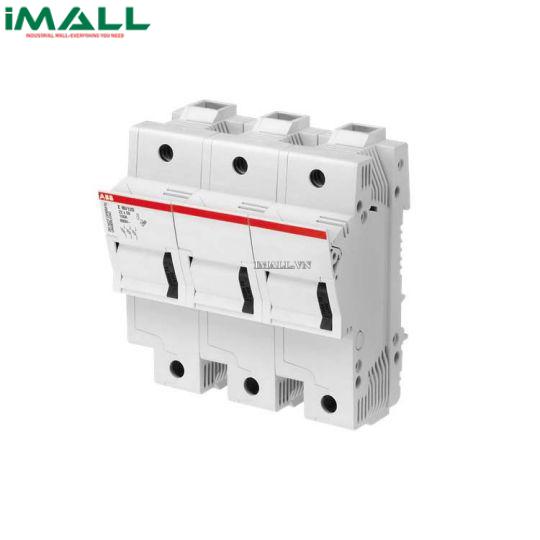

Vỏ cầu chì ABB E 93/50 (2CSM277962R1801, 14x51 mm)
