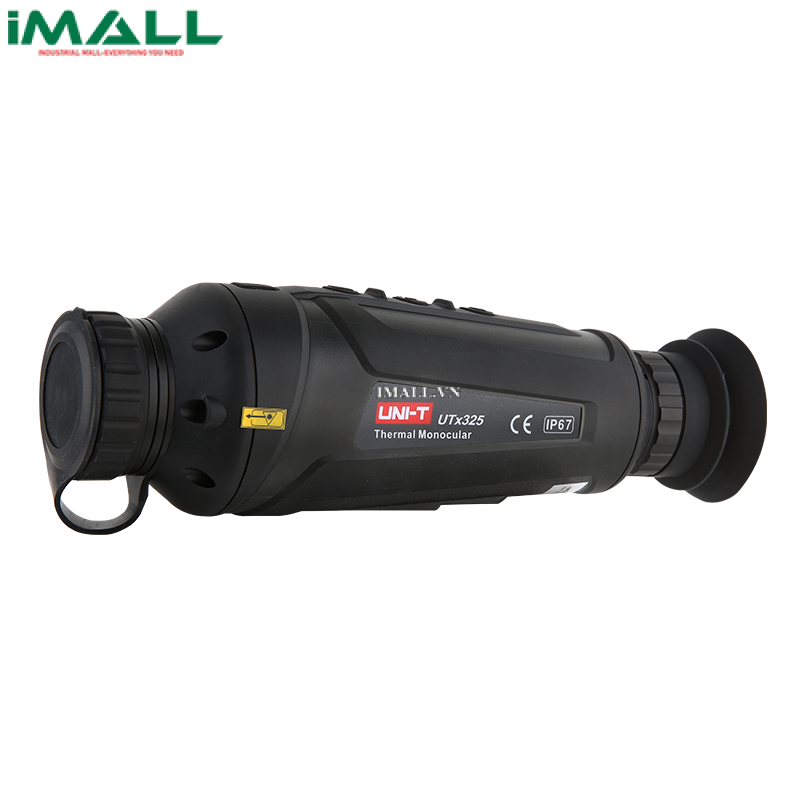

UNI-T UTx325 Thermal Imaging Monocular

UNI-T UTx325 Thermal Imaging Monocular

https://erp.imall.vn/web/image/product.template/626776/image_1920?unique=c544764

0 ₫ 0.0 VND 0 ₫

0 ₫

Không có sẵn để bán

Kết hợp này không tồn tại.

Liên hệ với chúng tôi

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Chia sẻ

Product Details

Manufacturer:

UNI-T

Model:

UTx325

Warranty:
Origin:

CHINA

Technical Specifications

  • Detector type UFPA (Vanadium oxide)
  • IR resolution 384×288
  • Pixel size 12μm
  • Spectral range 8-14μm
  • Thermal sensitivity(NETD) ≤40mK
  • Lens focal length 25mm/F1.0
  • Focus Manual
  • Field of view(FOV) 10.5° x 7.9°
  • Frame rate ≤50Hz
  • Display 0.4”LCOS
  • Display resolution 1280×960
  • Storage 16GB Internal
  • USB Type-C
  • IP rating IP67
  • Drop proof 2m
  • Battery 3.6V/4000mAh Li-ion battery
  • Battery operation time ≥8 Hours
  • Certificates UL,RoHS,CE,UKCA
  • Product sizemm
  • Digital zoom 2x, 4x / 1.0~4x continuous
  • Color palettes 5（Black hot, White hot, Hottest, Ironbow, Rainbow）
  • Hot trace √
  • Calibration modes Shutter,Background,Auto
  • DDE (Digital Detail Enhancement) Details & Edge
  • Laser pointer √ (650nm)
  • Photo capture √
  • PC software analysis √
  • Video output MCX interface

Package Includes

Import Information

HS Code:
Estimated Import Tax:

0,00

Customs Description

UNI-T UTx325 Thermal Imaging Monocular

UTx325 is a lightweight and portable thermal imaging monocular that equipped with a 384×288 infrared detector and a 1280×960 0.4”LCOS display. This thermal imaging monocular can take photos, storage and connect to the external screen for viewing.  The 50Hz frame frequency enables users to observe moving objects without delay. With hot spot tracking take accurately location and tracking; It can widely be widely used in many applications: outdoor observation, hunting, navigation, security, camping &search, law enforcement etc.

Features of UNI-T UTx325 Thermal Imaging Monocular

  • Lightweight and portable
  • IR resolution: 384×288
  • Display: 1280×960 0.4”LCOS
  • Hot trace
  • Color palettes: 5(Blackhot, Whitehot, Hottest, Ironbow, Rainbow)
  • PC software analysis
  • IP67
  • 2m drop proof

Applications of UTx325

Animal observation, hunting, navigation, security, camping &search, law enforcement etc. 20220614151825 1
Animal observation
20220614151825 2 Security
