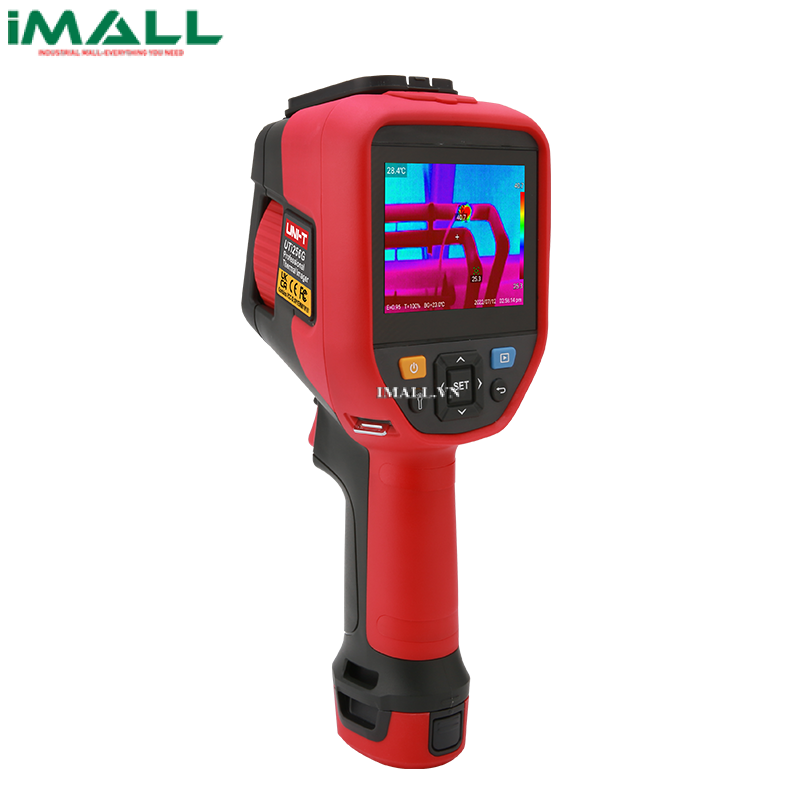

UNI-T UTi256G Professional Enhanced Thermal Camera (-20°C~550°C, 1.91mrad)

0 ₫ 0.0 VND 0 ₫

0 ₫

Kết hợp này không tồn tại.

Thêm vào giỏ hàng

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Product Details

Manufacturer:

UNI-T

Model:

UTi256G

Warranty:

Origin:

CHINA

Technical Specifications

IR resolution (Pixels) 256×192
Display 3.5‘’ IPS Touch (640×480)
Field of view(FOV) 28°×20°
Thermal sensitivity(NETD) ≤40mK
Spatial resolution(IFOV) 1.91mrad
Frame rate ≤30Hz
Focus Manual
Temperature measurement range -20℃~550℃
Accuracy ±2℃ or ±2% （whichever is greater）
Emissivity 0.01~1.00 adjustable(0.95 default)
Functions
Color palettes 7 (White hot, Black hot, Red hot, Ironbow, Rainbow HC, Rainbow, Lava)
Image modes Thermal,Visual image,Fusion,PIP
On screen analyzer 3 Points/3 Lines/3 Rectangles/3 Circles
Digital camera resolution 5MP
Digital zoom 2x, 4x
Hi/Lo temperature alarm Icon
Isotherm 5 (Auto/Manual/Above/Below/Section)
Software analysis PC+APP
Video recording —
Voice recording √
Wi-Fi / Bluetooth √ / √
GPS —
Laser pointer √
Laser distance measurement —
General Characteristics
Battery Detachable Li-ion battery pack(3.7V 5200mAh)
Battery operation time About 5 hours (with Wi-Fi off)
USB Type-C
IP rating IP54
Drop proof 2m
Storage 8GB Internal (32GB External)
Image/Video storage format JPEG
Certificates CE,UKCA,FCC,RoHS

Package Includes

Import Information

HS Code:

Estimated Import Tax:

0,00

Customs Description

UNI-T UTi256G Professional Enhanced Thermal Camera

UNI-T UTi256G is a professional enhanced thermal camera that specially designed for industrial use with high IR resolution 256×192 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UTi256G also support various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on screen analyzer，etc. They are perfect troubleshooting tools for many industrial applications.

Industrial Enhanced Thermal Camera

UTi256G is a professional enhanced thermal camera that specially designed for industrial use with high IR resolution 256×192 and wide temperature range:-20℃~550℃. The professional manual focus lens can flexibly adjust the focal length according to different objective’s distance and provide high quality image. The 3.5’’ large IPS touch screen take more efficient and convenient operation experience for users. UNI-T UTi256G also support various outstanding functions: such as Wi-Fi, voice recording, laser pointer, on screen analyzer，etc. They are perfect troubleshooting tools for many industrial applications. Camera ảnh Nhiệt Uni T Uti256g ( 20°c~550°c, 1.91mrad)

Camera ảnh Nhiệt Uni T Uti256g ( 20°c~550°c, 1.91mrad)

Features :

3.5″ IPS touchscreen (640×480)
IR resolution:256×192
Temperature measurement range: -20℃to 550℃
On screen analyzer :3 Points/3 Lines/3 Rectangles/3 Circles
Digital camera resolution: 5MP
Focus: Manual focus
Digital zoom: 2x, 4x
Wi-Fi and Bluetooth connection through Mobile App
PC software: analysis and real-time image projection
Voice recording
Image modes: Thermal,Visual image,Fusion,PIP
Color palettes: 7(White hot, Black hot, Red hot, Ironbow, HC Rainbow, Rainbow, Lava)
Isotherm: 5(Auto/Manual/Above/Below/Section)
5200mAh replaceable battery pack (Type-C rechargeable)
IP54
2m drop proof

Applications of UTi256G

Solar panel inspection, electric power tower inspection, electricity facilities inspection, automotive maintenance，mechanical equipment inspection, heating equipment inspection, building&HVAC inspection and other wide range applications: petrochemical,metallurgy,industry etc.
