Features
Product Details
Manufacturer:
UNI-T
Model:
UTi165A+
Warranty:
Origin:
CHINA
Technical Specifications
- IR resolution (Pixels) 160×120
- Display 2.8” TFT LCD (320×240)
- Field of view(FOV) 56°×42°
- Thermal sensitivity(NETD) ≤50mk
- Spatial resolution(IFOV) 6mrad
- Frame rate ≤9Hz
- Focus Focus free
- Temperature measurement range -10℃~400℃
- Accuracy ±2℃ or ±2%
- whichever is greater
- Emissivity 0.01~1.00 adjustable (0.95 default)
- Color palettes 5 (White hot, Red hot, Ice blue, Rainbow, Ironbow)
- Image modes Thermal,Visual image,Fusion
- Hi/Lo temperature alarm Icon,LED flashlight
- PC software analysis √
- Battery Fixed Li-ion battery (3.6V 5000mAh)
- Battery operation time ≥ 6 hours
- USB Type-C
- IP rating IP65
- Drop proof 2m
- Storage Up to 32GB Micro SD card
- Image/Video storage format BMP
- Certificates CE,RoHS
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

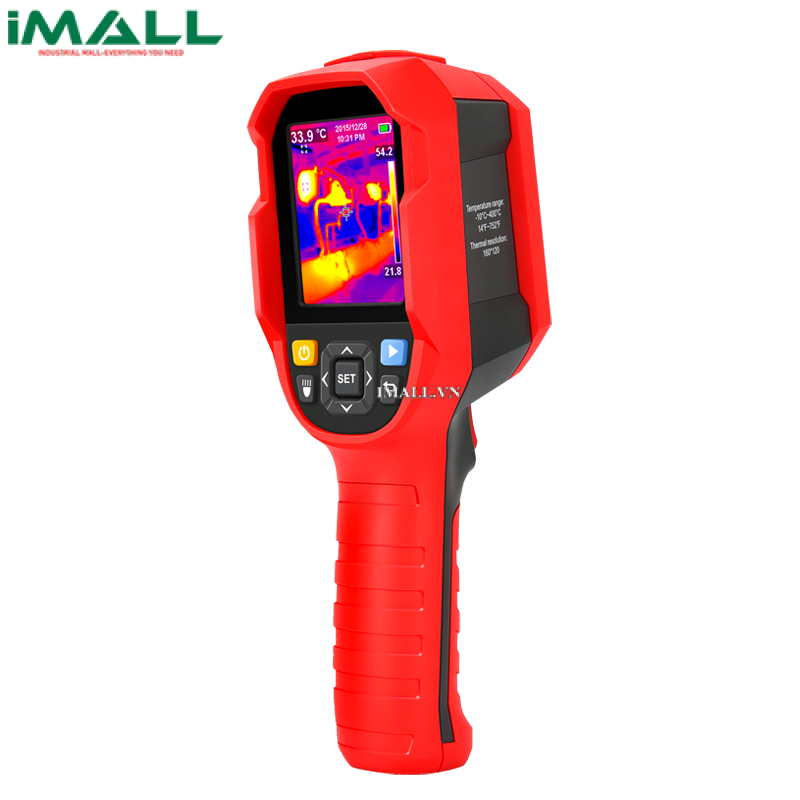

UNI-T UTi165A+ Heavy Duty Thermal Camera
UTi165A+ is a rugged and ergonomically designed thermal camera, powerful and user friendly with great performance, with 160×120 pixels IR resolution which can automatically track the objective’s temperature from -10℃~400℃. It is an affordable professional troubleshooting tool, widely used in many applications.
UNI-T UTi165A+ Heavy Duty Thermal Camera
Reference:Camera ảnh nhiệt UNI-T UTi120B (-20400℃, 120×90 pixels, 7.3mrad)
- Durable and user-friendly
- 8” TFT display screen (320×240 Pixels)
- IR resolution: 160×120
- Digital camera resolution：640×480
- Temperature measurement range: -10℃ to 400℃ / 14℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Color palettes: 5(White hot, Red hot, Ice blue, Rainbow, Ironbow)
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery
- 1/4” tripod mounting hole
- IP65
- 2m drop proof
Similar features: Camera ảnh nhiệt UNI-T UTi220B (-10400 ; 200x150pixels; 3.1mrad)
Applications of UTi165A+
PCBA inspection, motor inspection, automotive maintenance, solar panel inspection, power distribution cabinet inspection, electricity facilities inspection, mechanical equipment inspection, heating equipment inspection, building&HVAC inspection etc.
