Product Details
Manufacturer:
UNI-T
Model:
UT512E
Warranty:
Origin:
CHINA
Technical Specifications
-
- Điện áp định mức
- 250V: <0.25MΩ, 0.25MΩ～4.99GΩ, 5.00GΩ～49.9GΩ, 50.0GΩ～250GΩ
- 500V: <0.50MΩ, 0.50MΩ～9.99GΩ, 10.0GΩ～99.9GΩ, 100GΩ～500GΩ
- 1000V: <1.00MΩ, 1.00MΩ～19.9GΩ, 20.0GΩ～199GΩ, 200GΩ～1.00TΩ
- 2500V: <2.50MΩ, 2.50MΩ～49.9GΩ, 50.0GΩ～499GΩ, 500GΩ～2.50TΩ
- Độ chính xác: ±(5%+5), ±(20%+10)
- Kiểm tra tụ điện: 0.01uF～2.0uF, Độ chính xác: ±（15%+3)
- Kiểm tra điện trở thấp: 0.1Ω～600Ω, Độ chính xác: ±（2%+10)
- Điện áp DC: 30～1000VDC
- Điện áp AC: 30～750VAC, 50Hz/60Hz
- Dòng điện: 0.01nA～5mA
- Dòng ngắn mạch: khoảng 5mA
- Nguồn cung cấp: Pin lithium 14.8V, 5200mAh
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

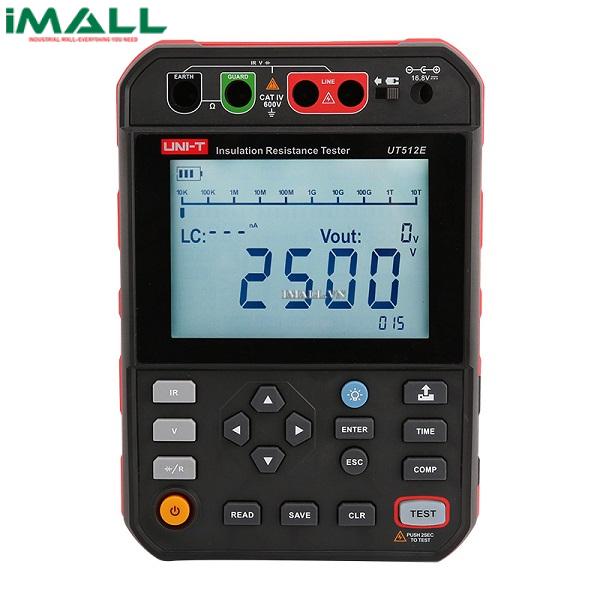

UT512E 2.5kV Insulation Resistance Testers
UT512E is digital high-voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V, 2500V. It is an ideal measurement meter for electric power, telecommunication, meteorology, machine room, oilfield, electromechanical installation and maintenance, and power supply department of Industry and mining enterprise. [caption id="attachment_798275" align="alignnone" width="445"]
Introducing the UNI-T UT512E Insulation Resistance Tester (2500V, 2.50TΩ)[/caption]
Certificates: CE, UKCA
● Output voltage range: Up to 2.5KV
● PI/DAR measurement
● Short circuit current measurement
● Automatic leakage current display
● Stepping voltage: 10% of the range
● High voltage alarm
● Automatic discharge
● Data storage: 999 sets
● PC software analysis: via USB cable
● Overvoltage category: CAT IV 600V
Features of UT512E 2.5kV Insulation Resistance Tester[/caption]
Applications of UT512E 2.5kV Insulation Resistance Testers
[caption id="_0" align="alignnone" width="524"]
Application of UNI-T UT512E Insulation Resistance Tester[/caption]
Application of UNI-T UT512E Insulation Resistance Tester[/caption]
