Product Details
Manufacturer:
UNI-T
Model:
UT512D
Warranty:
Origin:
CHINA
Technical Specifications
- Điện áp định mức
- 250V: <0.25MΩ, 0.25MΩ～4.99GΩ, 5.00GΩ～24.9GΩ, 25.0GΩ～100GΩ
- 500V: <0.50MΩ, 0.50MΩ～9.99GΩ, 10.0GΩ～49.9GΩ, 50.0GΩ～200GΩ
- 1000V: <1.00MΩ, 1.00MΩ～19.9GΩ, 20.0GΩ～99.9GΩ, 100GΩ～400GΩ
- 2500V: <2.50MΩ, 2.50MΩ～49.9GΩ, 50.0GΩ～249GΩ, 250GΩ～1.00TΩ
- Độ chính xác: ±(5%+5), ±(20%+10)
- Điện áp DC: 30～1000VDC
- Điện áp AC: 30～750VAC, 50Hz/60Hz
- Dòng điện: 0.01nA～3.5mA
- Dòng ngắn mạch: khoảng 3.5mA
- Nguồn cung cấp: 8 viên pin LR14 kiềm
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

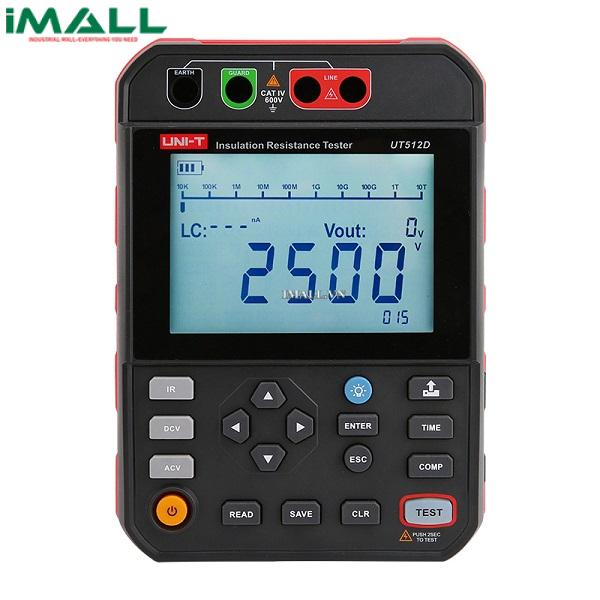

UT512D 2.5kV Insulation Resistance Testers
UT512D is digital high-voltage insulation resistance tester, designed with multiple ranges including 250V, 500V, 1000V, 2500V. It is an ideal measurement meter for electric power, telecommunication, meteorology, machine room, oilfield, electromechanical installation and maintenance, and power supply department of Industry and mining enterprise.
Certificates: CE, UKCA
● Output voltage range: Up to 2.5KV
● PI/DAR measurement
● Short circuit current measurement
● Automatic leakage current display
● Stepping voltage: 10% of the range
● High voltage alarm
● Automatic discharge
● Data storage: 999 sets
● PC software analysis: via USB cable
● Overvoltage category: CAT IV 600V
Features of UT512D Insulation Resistance Tester[/caption]
Applications of UT512D 2.5kV Insulation Resistance Testers
