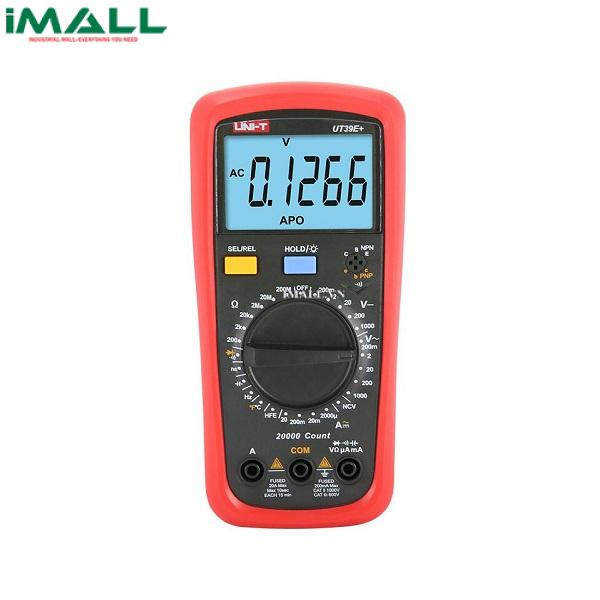

UNI-T UT39E+ Modern Digital Multimeter (DC/AC 1000V, DC/AC 20A)

https://erp.imall.vn/web/image/product.template/625432/image_1920?unique=51429d3

0 ₫ 0.0 VND 0 ₫

0 ₫

Không có sẵn để bán

Kết hợp này không tồn tại.

Điều khoản và điều kiện
Hoàn tiền trong 30 ngày
Giao hàng: Từ 2-3 ngày làm việc

Product Details

Manufacturer:

UNI-T

Model:

UT39E+

Warranty:
Origin:

CHINA

Technical Specifications

  • Xếp hạng danh mục: CAT II 1000V, CAT III 600V
  • Điện áp DC (V): 200mV / 2V / 20V / 200V / 1000V ± (0.05% + 3)
  • Điện áp AC (V): 200mV / 2V / 20V / 200V / 1000V ± (0.5% + 10)
  • Dòng điện DC (A): 2000uA / 20mA / 200mA / 2A / 20A ± (0.5% + 5)
  • Dòng điện AC (A): 2000uA / 20mA / 200mA / 2A / 20A ± (0.8% + 10)
  • Điện trở (Ω): 200Ω / 2kΩ / 20kΩ / 2MΩ / 20MΩ / 200MΩ ± (0.3% + 2)
  • Điện dung (F): 2000uF ± (4% + 20)
  • Tần số (Hz): 10Hz~2MHz ± (0.1% + 3)
  • Nhiệt độ: -40°C~1000°C ± (1% + 5); -40°F~1832°F ± (1.5% + 5)
  • Độ dẫn (nS): 0.1~100nS ± (1% + 3)
  • Hiển thị đếm: 20000
  • NCV: Có
  • Nguồn: Pin 1.5V (R03) x 2
  • Màn hình: 56.5mm x 36mm

Package Includes

Import Information

HS Code:
Estimated Import Tax:

0,00

Customs Description

UNI-T UT39E+ Modern Digital Multimeter (DC/AC 1000V, DC/AC 20A)

  • UT39+ series modern digital multimeters are portable devices designed for the electrical industry. They feature overvoltage and overcurrent alarm and high voltage protection, triggered during faulty operation. UT39C+ is suitable for HVACR maintenance with its temperature measurement feature. Designed according to CAT II 1000V/CAT III 600V safety standards.Models in UT39+ Series: UT39A+, UT39C+, UT39E+
[caption id="_0" align="aligncenter" width="600"]Đồng hồ vạn năng UNI-T UT39E+ (1000V DC/AC, 20A DC/AC) UNI-T UT39E+ Modern Digital Multimeter (DC/AC 1000V, DC/AC 20A)[/caption]

Features of UT39E+ Digital Multimeter

  • Measure DC 1000V voltage
  • Measure 750V AC voltage
  • Measure 10A
  • DC/AC current
  • Resistance/Capacitance
  • hFE Check diode/Continuity
  • Measure AC/DC multimeter values, voltage, current, power, frequency, phase, ductility, load ratio, power regulation and power index.
  • Capable of measuring real-time multimeter values ​​with automatic frequency.
  • Can measure universal values ​​in difficult situations, including extremely high and extremely low universal values.
  • Capable of multimeter measurement in MIN/MAX/AVG mode.
  • There is an automatic shutdown mode to save battery.
  • There is a Hold mode to hold the measured value.
  • Has Backlight mode for easy reading of values ​​in low light conditions.
  • There is an Auto Range mode to automatically select the appropriate measurement range.
  • There is a Data Hold mode to retain the last measured value.
  • There is an Auto Power Off mode to turn off the device automatically when not in use

Application of Digital Multimeter UT39E+ series

  • DC (V): 400mV/4V/40V/400V/1000V ±(0.5%+5)
  • AC (V): 4V/40V/400V/750V ±(0.8%+3)
  • DC (A): 400uA/400mA/10A ±(0.8%+3)
  • AC (A): 4mA/400mA/10A ±(1%+2)
  • Resistance (Ω): 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ ±(0.8%+2)
  • Capacitance (F): 4nF/40nf/400nF/4uF/40uF/400uF/4mF/10mF ±(4%+5)
  • Frequency (Hz): 10Hz~1MHz ±(1%+4)
  • Temperature: -40°C~1000°C ±(1%+4); -40°F~1832°F ±(1.5%+5)
  • Power source: 1.5V battery (R03)×2 Screen: 56.5mm x 36mm
  • Machine color: Red and gray I
  • ncluded accessories:
  • Some features:
  • Display count: 4000
  • Auto range:
  • No Bandwidth (Hz): 40Hz~400Hz
  • True RMS: No
  • Diode Test: Yes
  • Semiconductor testing: Yes
  • Continuous alarm (whistle sounds): Yes
  • NCV: Yes
  • MAX/MIN: No
  • Relative mode: Yes
  • Data retention: Yes
  • Auto power off: Yes
  • LCD backlight: Yes
  • Entry alarm: Yes
  • Total input resistance (DCV): ≈10MΩ
  • Measurement level:
  • CAT II 1000V, CAT III 600V
  • Impact test: 2m
[caption id="_0" align="alignnone" width="793"]UT39E+ Đo Điện Áp của Đồng hồ vạn năng UNI-T UT39C+ Voltage measurement[/caption]
[caption id="_0" align="alignnone" width="793"]Đo lường UT39C + NCV NCV measurement[/caption]
[caption id="_0" align="alignnone" width="793"]Tính năng Đo Dòng Điện của Đồng hồ vạn năng UNI-T UT39C+ Current measurement[/caption]
[caption id="_0" align="alignnone" width="793"]Tính năng Đo điện dung của Đồng hồ vạn năng UNI-T UT39C+ Capacitance measurement[/caption]
