Product Details
Manufacturer:
UNI-T
Model:
UT219P
Warranty:
Origin:
CHINA
Technical Specifications
- Dòng điện AC(A): 1000A, độ chính xác: ±(1.5%+3)
- Điện áp AC(V): 1000V, độ chính xác: ±（0.7%＋3）
- Công suất (một pha): 1000KW, độ chính xác: ±（1.7%+5）
- Công suất (ba pha & ba dây): 1732KW, độ chính xác: ±（1.7%+5）
- Công suất (ba pha & bốn dây): 3000KW, độ chính xác: ±（1.7%+5）
- Tần số công suất (Hz): 15Hz～1000Hz, độ chính xác: ±（0.3%+3）
- Góc pha (-180°~ 179.9°)
- 15Hz～40Hz, độ chính xác: ±5°
- 40Hz～70Hz, độ chính xác: ±3°
- 70Hz～1000Hz, độ chính xác: ±5°
- Độ rộng hàm: 75mm
- Phát hiện pha: √(80V~1000V), Dương và Âm
- Đo đỉnh AC/DC: √
- Đo sóng hài: 32 lần
- Chế độ hiển thị: Màn hình LCD, hiển thị 4 kết quả cùng một lúc
- Số đếm hiển thị: 9999
- Ứng dụng Bluetooth: √
- True RMS: √
- Cảnh báo quá tải: √
- Cảnh báo điện áp cao: √
- Cảnh báo quá tải điện áp cao: √
- Cảnh báo pin yếu: √
- Giữ dữ liệu: √
- Tự động tắt nguồn: Khoảng 15 phút
- Giá trị tối đa/tối thiểu: √
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description
UNI-T UT219P AC Digital Power Clamp Meter (1000A, 1000V, True RMS)
UT219P is an intelligent, handheld, and stable power and harmonics clamp meter, with the functions of a digital ammeter and power meter. It can measure harmonics, 3-phase unbalanced voltage, AC voltage, AC current, power, power factor, and more.
It is widely used in photovoltaic power stations, motor manufacturing, and power/harmonic measurement of electrical equipment and distribution cabinets in residential enterprises.
UT219P is a digital power clamp with fundamental frequency up to 1 kHz. This clamp meter can be used to measure AC voltage, AC current, active power, apparent power, reactive power, power factor, phase angle, power quality, frequency, phase sequence, total harmonic distortion, harmonic component, etc. It has different measurement modes including single phase, threephase three-wire, and three-phase four-wire. Designed with Bluetooth function, measurement data can be monitored and recorded via mobile phone and tablet, and professional report can be generated. Featuring easy operation, stable performance, accurate measurement and more,
UT219P can be applied in multiple fields such as:
1) Measure power quality of UPS to evaluate if operation is normal.
2) Measure power factor of power system to analyze capacitive or inductive load.
3) Measure harmonic of power grid of power system, to find out harmonic issue that may
damage the load of nonlinear equipment of power grid.
4) Troubleshoot 400Hz AC power supply system of aviation and 25Hz AC power supply system
of railway.
5) Test and maintain high-power motor, centrifugal fan, centrifugal water pump, wind power
generation, solar power generation.
6) Test new energy vehicles and hybrid electric vehicles, evaluate motor efficiency, invertor
efficiency and energy consumption of driving.

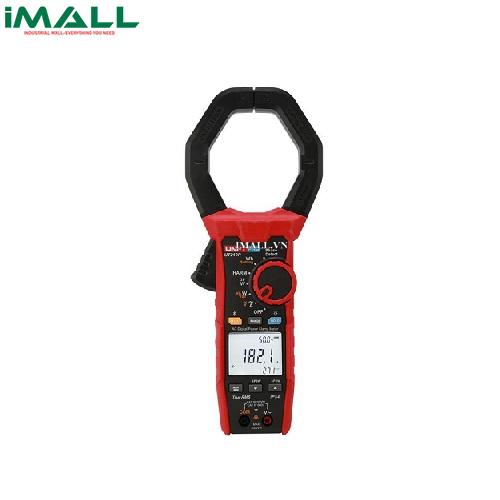

[caption id="_0" align="alignnone" width="288"]
Ampe kìm phân tích công suất AC (1000A, 1000V, True RMS) UNI-T UT219P[/caption]
Ampe kìm phân tích công suất AC (1000A, 1000V, True RMS) UNI-T UT219P[/caption]
Features of UT219P AC Digital Power Clamp Meter
1) Completely sealed (Ip54). 2) Wide jaw opening (80mm) enables measuring current of thick conductor (Max. 75mm). 3) Category rating: CAT IV 600V AC, CAT III 1000V AC. 4) 1000V AC RMS voltage measurement, 15Hz~1000Hz frequency response range. 5) 1000A AC RMS current measurement, 15Hz~1000Hz frequency response range. 6) Ability to measure and display RMS and peak simultaneously. 7) Multiple wire connecting modes including single-phase two-wire, single-phase three-phase, balanced three-phase wire-wire, unbalanced three-phase three-wire, balanced three-phase four-wire, unbalanced three-phase four-wire, and more. Simple guidelines for wire connecting places can be shown on the upper and lower displays when performing three-phase connection. 8) Wide fundamental frequency range for power measurement: 15Hz~1000Hz. 9) Ability to analyze 40th voltage and current harmonics. THD %f (total harmonic to fundamental wave distortion), THD %r (total harmonic to full wave) and RMS of harmonic component of each order. 10) Identify if electricity theft occurs by comparing measurement of single-phase active electric energy of electric energy meter. 11) Detect phase sequence of motor to prevent inversed phase sequence of power supply from causing motor to rotate inversely. 12) Via Bluetooth APP, the product can record measurement data and generate graph, table, and report. The product has multiple functions including real-time monitoring for rapid troubleshooting, data recording and processing, integrated management, and more, so as to achieve integrated monitoring, maintenance and management.
Tính năng UNI-T UT219P
