Product Details
Manufacturer:
UNI-T
Model:
UT122
Warranty:
Origin:
CHINA
Technical Specifications
- Điện áp xoay chiều (V) Dải 6.000V/60.00V/600.0V: ±(1.0%+3)
- Tần số điện áp xoay chiều (Hz) Dải tần 10Hz-1kHz: ±(0,5%+2)
- Điện áp DC (V) Dải 6.000V/60.00V/600.0V: ±(0.5%+3)
- Điện trở (Ω) Dải 600.0Ω/6.000KΩ/60.00KΩ/600.0KΩ/6.000MΩ/60.00MΩ: ±(2.0%+5)
- Điện dung (F) Dải 99,99nF/999,9nF～9,999μF/9,999mF～99,99mF: 10%
- Dải tần (Hz) 10.00Hz-10.00MHz: ±(0.1%+3)
- Nhiệt độ(℃/℉) Dải –40℃～1000℃/–40°F～1832°F: ±3℃/±6℉
- Số lượng hiển thị: 6199
- Hiển thị kép: có
- Xếp hạng danh mục: CATⅢ 600V
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

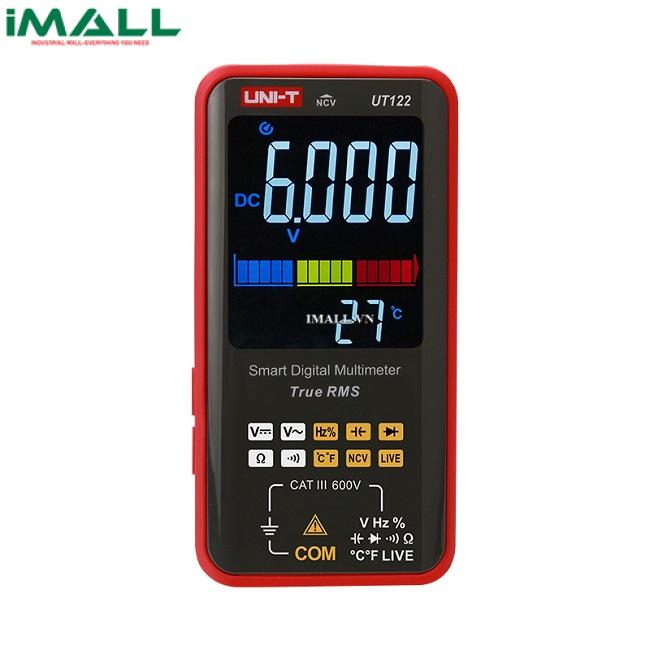

UNI-T UT122 Digital Multi-meter
UT122 series has a large display, super fine multimeter and auto range, and they can display two measurement results at the same time, convenient for home and non-professional users. They are convenient and quick electronic tools.UNI-T UT122 multimeter is a multimeter used to measure multimeter values such as voltage, current, power, combined power, etc.
Model: UT121A, UT121B, UT122
AC/DC 600V voltage measurement (UT122)
● 60MΩ large resistance measurement (UT122)
● 99mF large capacitance measurement (UT122)
● Built-in rechargeable lithium battery, Type-C charging (UT122)
● Temperature measurement (UT122)
● Full-scale input protection
● NCV/LIVE measurement
● Large size LCD screen
● 19mm ultra-thin body
● 6000counts
● Intelligent identification gear
Applications of UT121 Series Smart Digital Multimeters
The main use of the UNI-T UT122 Multimeter is to help users measure multimeter values quickly and accurately.
