Product Details

Manufacturer:

UNI-T

Model:

2117R

Warranty:
Origin:

CHINA

Technical Specifications

  • Dòng điện AC (A): 1000A; ± (1.5% + 4)
  • Tần số dòng AC (Hz): 20Hz - 10kHz; ± (1.0% + 5)
  • Điện áp AC (V): 1000V; ± (1.0% + 2)
  • Điện áp DC (V): 1000V; ± (0.7% + 3)
  • Điện trở (Ω): 60MΩ; ± (0.8% + 2)
  • Điện dung (F): 6mF; ± (4% + 5)
  • Kích thước kẹp: 33mm
  • Nguồn: AAA 1.5V x 2

Package Includes

Import Information

HS Code:
Estimated Import Tax:

0,00

Customs Description

UNI-T 2117R Clamp Meter (True RMS, 1000AAC)

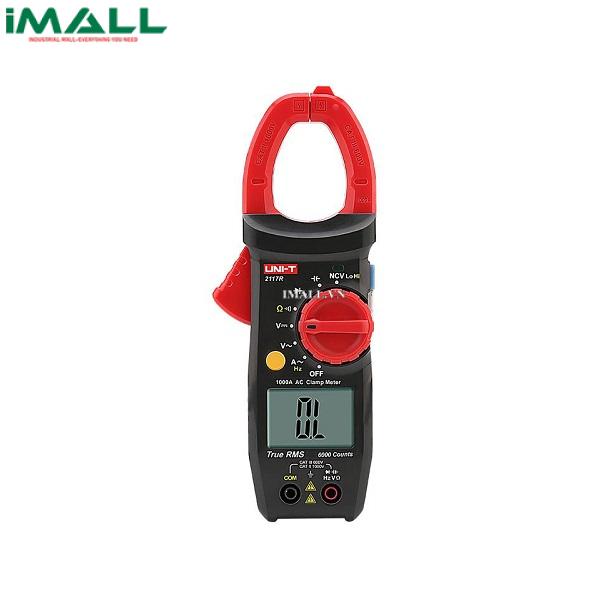

UNI-T 2117R Clamp Meter (True RMS, 1000AAC)  clamp meter is an excellent choice for measuring alternating current. It features 1000V AC/DC voltage measurement, 60MΩ resistance measurement, and bright backlight. Dual-mode NCV allows users to detect voltage directly without contact with any metal surface. The high frequency response range suits a wider range of measurement applications. This meter is CE/UKCA approved and has a CAT II 1000V / CAT III 600V safety rating with 1000V overload protection.

The main uses of the UNI-T 2117R clamp meter are:

  • Measure the actual capacity of electrical equipment, helping to check the operating status of electrical equipment.

  • Used in research, testing and quality control of electrical equipment.

  • Used in industries, helping to check the operating status of electrical equipment in workshops, factories and production units.

    Ampe kìm UNI-T 2117R (True RMS, 1000A AC, 1000V AC/DC)

UNI-T 2117R Clamp Meter (True RMS, 1000AAC)

Features of AC 2117R True RMS 1000A Clamp Meter

  • Certificates: CE, UKCA
  • True RMS
  • Measure 1000A alternating current
  • Measure AC/DC voltage 1000V
  • Large LCD screen with backlight
  • ACA frequency measurement: 20H～10kHz
  • 1000V overload protection
  • NCV (Dual Mode High/Low)

Specifications of UNI-T UT2117R Clamp Ampere

  • AC current (A): 1000A; ± (1.5% + 4)
  • AC line frequency (Hz): 20Hz - 10kHz; ± (1.0% + 5)
  • AC voltage (V): 1000V; ± (1.0% + 2)
  • DC voltage (V): 1000V; ± (0.7% + 3)
  • Resistance (Ω): 60MΩ; ± (0.8% + 2)
  • Capacitance (F): 6mF; ± (4% + 5)
  • Clamp size: 33mm
