Product Details
Manufacturer:
HIOKI
Model:
FT4310
Warranty:
Origin:
Nhật Bản
Technical Specifications
| Measurement items | Bypass diode comparator judgment, Bypass route resistor, Open-circuit voltage, Short-circuit current, Measurement (applied) current |
|---|---|
| Measurement object | Crystal system string Open-circuit voltage: 1000 V DC or less, Rated current: 2 A to 12 A DC |
| Measurement method | Short-circuit and pulse voltage application |
| Measurement accuracy | Open-circuit voltage: ±0.2% rdg. ±3 dgt. (at 0 to ±1000 V) Short-circuit current: ±3% rdg. ±3 dgt. (at 0.0 to 15.0 A) Bypass route resistance: ±5% rdg. ±5 dgt. (at 0.0 to 15.0 Ω, During pure resistance measurement) |
| Measurement time | 2 s or less (3 seconds or less when measurement voltage is 10 V or less) |
| Possible number of measurements | 3000 times (Comparator, backlight, Bluetooth® OFF) LR6 Alkaline battery × 6 |
[Voc mode]
| Measurement items | Open-circuit voltage |
|---|---|
| Measurement range | 0 V to 1000 V DC (Displayed up to 1200 V DC), Accuracy: ±0.2% rdg. ±3 dgt. |
| Response time | Within 1 sec. |
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

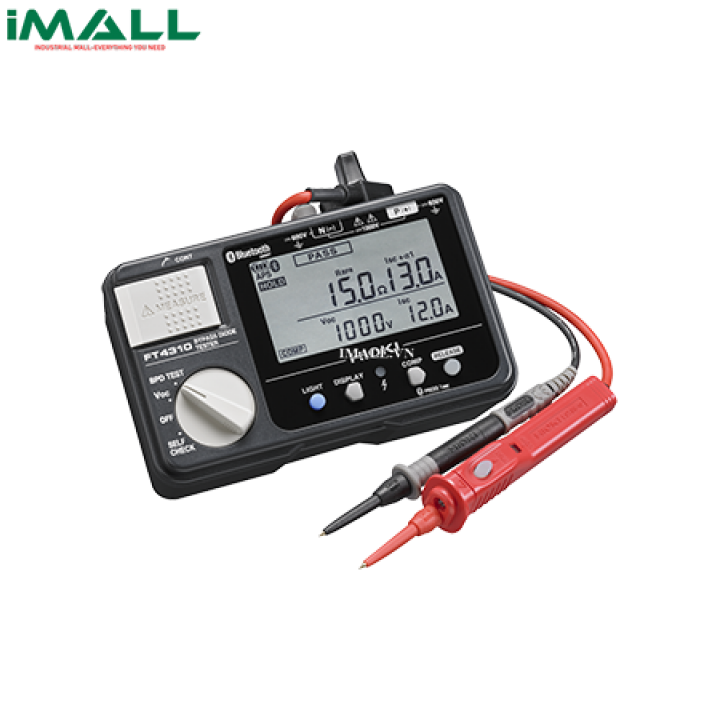

Thiết bị kiểm tra Diode HIOKI FT4310 (BYPASS DIODE)
