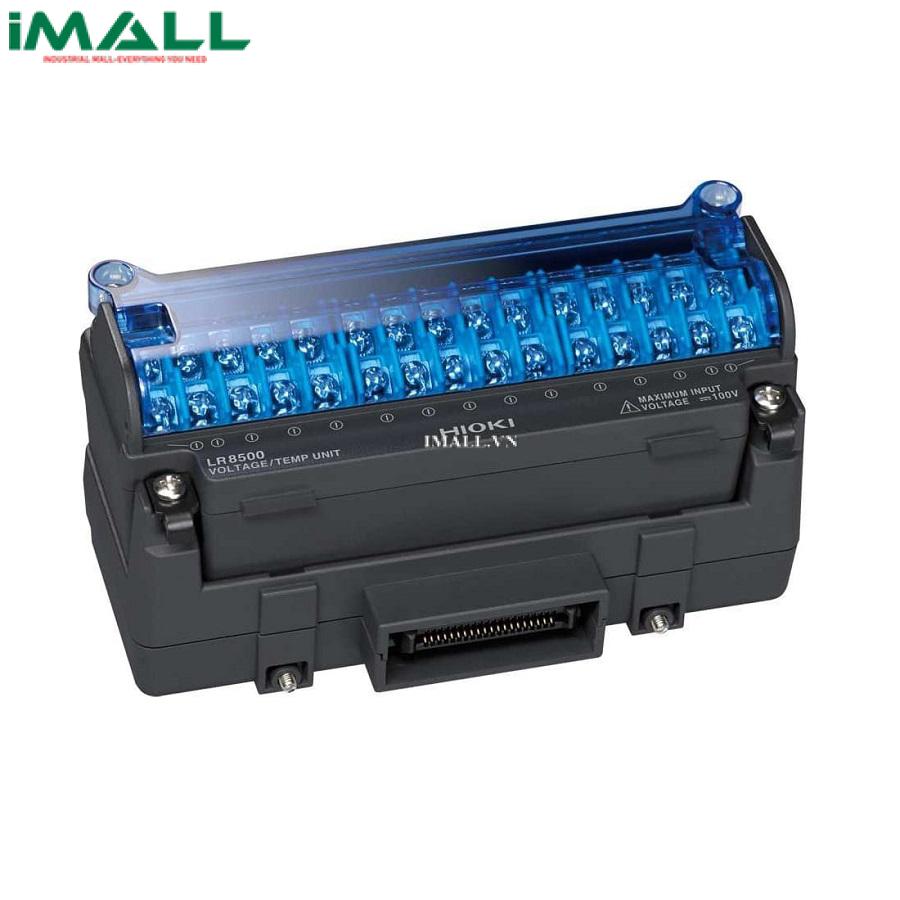

Module đầu vào điện áp / nhiệt độ Hioki LR8500 (15 kênh)

Technical Specifications

• [No. of channels] 15 analog channels; isolated scanning method input (2 terminals: M3 screw type)
• [Voltage] 10 mV to 100 V, 1-5 V f.s. 10 ranges, Max. resolution: 500 nV
• [Temperature: Thermocouples] -200°C to 2000°C (depends on sensor), 3 ranges (K, J, E, T, N, R, S, B, W), Max. resolution 0.01°C
• [Temperature: Pt 100, JPt 100 sensor] [Resistance] not available
• [Humidity] 100 % rh f.s. 5.0 to 95.0 % rh (when using Z2000), resolution 0.1 % rh
• [Max. rated voltage between isolated input channels] 250 V DC
• [Max. allowable input] ±100 V DC
• [Max. rated voltage from isolated terminals to ground] 300 V AC, DC
