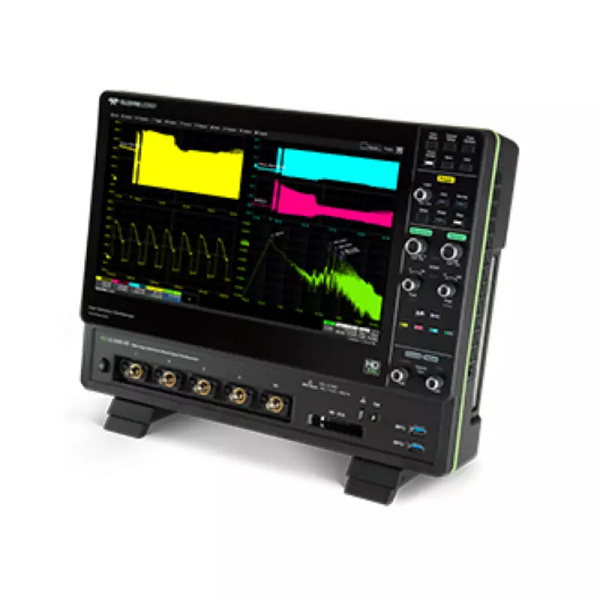

Máy hiện sóng số Teledyne LeCroy HDO6104B-MS

Technical Specifications

Analog Bandwidth (Max): 1 GHz

Bandwidth:1 GHz

Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input):1 GHz

:(≥1 mV/div)

Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input):500 MHz (typical)

Rise Time (10-90%, 50 Ω):450 ps (typical)

Rise Time (20-80%, 50 Ω):300 ps (typical)

Input Channels:4

Vertical Resolution:12 bits; up to 15 bits with enhanced resolution (ERES)

Effective Number of Bits (ENOB):8.4 bits

Vertical Noise Floor (1 mV/div):145 uVrms

Vertical Noise Floor (2 mV/div):145 uVrms

Vertical Noise Floor (5 mV/div):150 uVrms

Vertical Noise Floor (10 mV/div):155 uVrms

Vertical Noise Floor (20 mV/div):185 uVrms

Vertical Noise Floor (50 mV/div):275 uVrms

Vertical Noise Floor (100 mV/div):500 uVrms

Vertical Noise Floor (200 mV/div):1.75 mVrms

Vertical Noise Floor (500 mV/div):2.75 mVrms

Vertical Noise Floor (1 V/div):4.90 mVrms

Sensitivity:

50 Ω: 1 mV-1 V/div, fully variable;

1 MΩ: 1 mV-10 V/div, fully variable

DC Vertical Gain Accuracy (Gain Component of DC Accuracy):±(0.5%) FS, offset at 0 V
