Product Details
Manufacturer:
AMPROBE
Model:
MO-100
Warranty:
Origin:
Đài Loan
Technical Specifications
- Dãi đo:
- 0 → 200.0 mO in steps of 100 µO
- 0 → 2000 mO in steps of 1 mO
- 0 → 20.00 O in steps of 10 mO
- 0 → 200.0 O in steps of 100 mO
- 0 → 2000 O in steps of 1 O
- Test current:
- 1 mA (2000 O range)
- 10 mA (20 O / 200 O range)
- 100 mA (200 mO / 2000 mO range)
- Test current accuracy: ±0.1%
- Độ chính xác:
- ±0.5% of reading ±2 digits over the operating temperature range, -15 °C to 55 °C (5 °F to 131 °F), with the supplied test leads
- Cầu chì bảo vệ:
- Mains = 0.5A, HBC, 5 x 20mm, DIN
- Current = 0.5A, HBC, 5 x 20mm, DIN
- Voltage = 0.5A, HBC, 5 x 20mm, DIN
- Maximum output
- Voltage (C1-C2) 20V
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

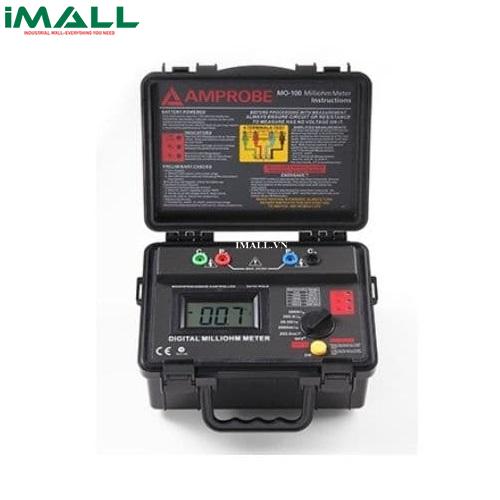

Đồng hồ milliohm Amprobe MO-100
- Accurate four terminal measurement down to 100µ ohms does not require test leads resistance compensation
- Ranges from 200.0m ohms to 2000 ohms with minimum resolution of 100µ Ohm
- Measurement precision with three test currents with over-temperature protection
- Protection against inadvertent connection to overvoltage
- Large LCD
- Potential lead resistance, current lead resistance checks
- Auto-hold and auto-off features
- Lightweight, robust compact.
- Indicates measurement errors due to temperature or connection problems
- O-Ring sealed enclosure
- Battery powered
- IEC / EN 61010-1
