Product Details
Manufacturer:
COSMOS
Model:
XOS-2200
Warranty:
Origin:
Japan
Technical Specifications
| Model | XOS-2200 | |
| Gas Detected | Oxygen (O2) | Hydrogen Sulfide (H2S) |
| Detection Principle | Galvanic cell | Electrochemical cell |
| Sampling Method | Diffusion | |
| Detection Range (Service Range) | 0 to 25 vol% (25 to 50 vol%) | 0 to 30.0 ppm (30.1 to 100 ppm) |
| Resolution | 0.1vol% | 0-35.0 ppm: 0.1ppm 35-100ppm: 5ppm |
| Indication Accuracy*1 | Within ±0.5vol% ±1 digit | Within ±1.5ppm ±1 digit |
| Alarm Set Value | 1st stage: 19.5vol% 2nd stage: 18.0vol% | 1st stage: 10.0ppm 2nd stage: 15.0ppm |
| Response Time*2 | 20s or less | 30s or less |
| Display Mode | LCD (Manual backlight) | |
| Alarm Mode | Buzzer sounds, flashing red light, vibrator | |
| Approvals | Ex ib IIB T3 (TIIS) | |
| Function | Remaining battery level, peak hold, memory of peak value, alarm functions except gas alarm (sensor malfunction, remaining battery level, air-adjustment malfunction), gas concentration indication | |
| Operation Temperature | -10 to +40 °C, 30 to 85 %RH (non-condensing) | |
| Operation Air Pressure | Air pressure ±10% | |
| Power Source | 1 x AAA alkaline dry cell (LR03) | |
| Battery Life*3 | Up to 5,000 hours (at 20°C without alarm) | |
| Dimensions | W65 x H64 x D22 mm (excluding protrusions) | |
| Weight | Approx. 75g (including batteries) | |
| Standard Accessories | 1 x AAA alkaline dry cell, 1 x safety pin adaptor (with fixing screw) | |
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

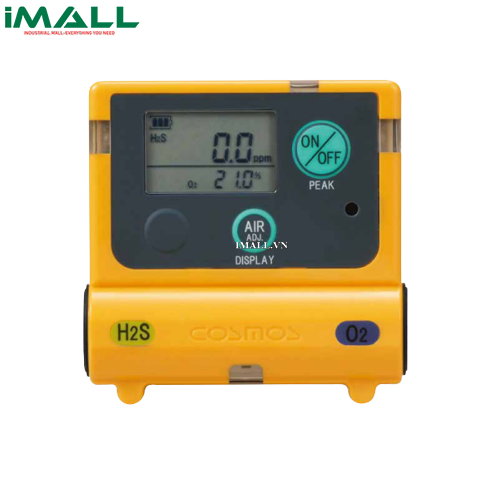

Cosmos XOS-2200 H2S/O2 gas meter
Máy đo khí H2S/O2trong không khí Cosmos XC-2200 là một trong những máy đo H2S/O2 trong không khí nhỏ nhất hiện tại. với trọng lương 75g, rất thuận tiện trong việc mang theo để đo nồng độ H2S/O2, đảm bảo an toàn lao động trong môi trường hiếm khí [caption id="attachment_651947" align="alignnone" width="500"]
Máy đo khí H2S/O2 COSMOS XOS-2200[/caption]
Đặc trung của Máy đo khí H2S/O2 COSMOS XOS-2200
- Có thể sử dụng liên tục trong 5000 giờ.
- Có sẵn còi lớn, đèn cảnh báo từ 4 chiều, chức năng giữ đỉnh.
- Thiết kế mỏng, nhẹ.
- Báo mức pin, lưu giữ giá trị lớn nhất, hiển thị thời gian đo trung bình, các chức năng báo động khác ngoại trừ báo động về khí: cảm biến hư, mức pin còn lại, chức năng hiệu chỉnh không khí hỏng.
Ứng dụng của Máy đo khí H2S/O2 COSMOS XOS-2200
| Model | XOS-2200 | |
| Gas Detected | Oxygen (O2) | Hydrogen Sulfide (H2S) |
| Detection Principle | Galvanic cell | Electrochemical cell |
| Sampling Method | Diffusion | |
| Detection Range (Service Range) | 0 to 25 vol% (25 to 50 vol%) | 0 to 30.0 ppm (30.1 to 100 ppm) |
| Resolution | 0.1vol% | 0-35.0 ppm: 0.1ppm 35-100ppm: 5ppm |
| Indication Accuracy*1 | Within ±0.5vol% ±1 digit | Within ±1.5ppm ±1 digit |
| Alarm Set Value | 1st stage: 19.5vol% 2nd stage: 18.0vol% | 1st stage: 10.0ppm 2nd stage: 15.0ppm |
| Response Time*2 | 20s or less | 30s or less |
| Display Mode | LCD (Manual backlight) | |
| Alarm Mode | Buzzer sounds, flashing red light, vibrator | |
| Approvals | Ex ib IIB T3 (TIIS) | |
| Function | Remaining battery level, peak hold, memory of peak value, alarm functions except gas alarm (sensor malfunction, remaining battery level, air-adjustment malfunction), gas concentration indication | |
| Operation Temperature | -10 to +40 °C, 30 to 85 %RH (non-condensing) | |
| Operation Air Pressure | Air pressure ±10% | |
| Power Source | 1 x AAA alkaline dry cell (LR03) | |
| Battery Life*3 | Up to 5,000 hours (at 20°C without alarm) | |
| Dimensions | W65 x H64 x D22 mm (excluding protrusions) | |
| Weight | Approx. 75g (including batteries) | |
| Standard Accessories | 1 x AAA alkaline dry cell, 1 x safety pin adaptor (with fixing screw) | |
