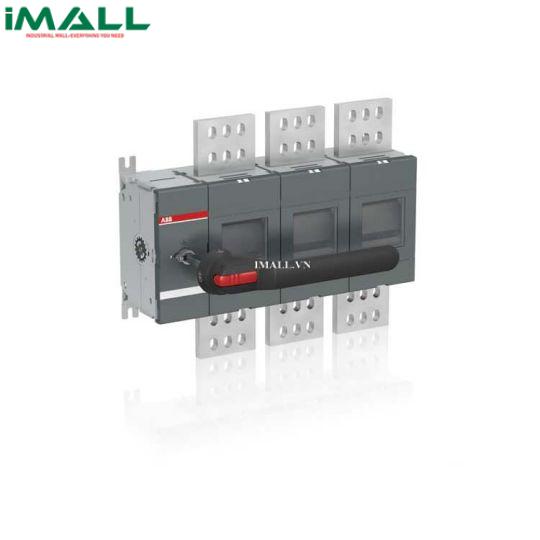

Cầu dao cắt tải ABB OT2500E03P (1SCA104972R1001)

Technical Specifications

• Rated Operational Current AC-21B (Ie):
  • (380 ... 415 V) 2500 A
  • (500 V) 2500 A
  • (690 V) 2500 A
• Rated Operational Current AC-22B (Ie):
  • (380 ... 415 V) 2500 A
  • (500 V) 2500 A
  • (690 V) 2500 A
• Conventional Free-air Thermal Current (Ith):q = 40 °C 2500 A
• Rated Impulse Withstand Voltage (Uimp):12 kV
• Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 1000 V
• Rated Operational Voltage:Main Circuit 1000 V
• Rated Short-Circuit Making Capacity (Icm):(690 V) 176 kA
• Rated Short-time Withstand Current Low Voltage (Icw):for 1 s 55 kA
