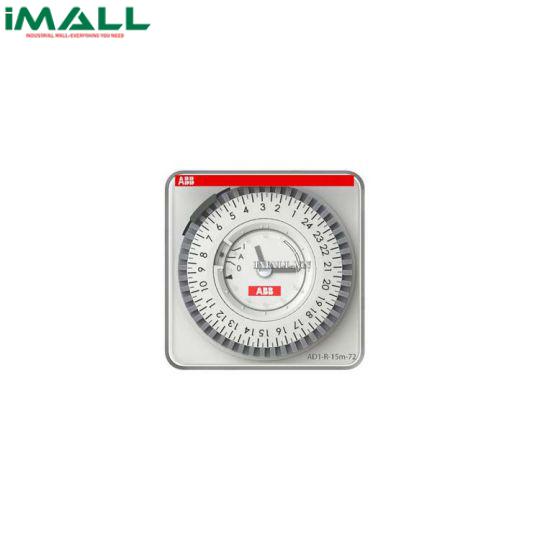

Rơ le thời gian (Timer) ABB AD1-R-15m-72 (2CSM208131R1000)

Technical Specifications

• Standards:EN 60730-2-7
• Function:Daily
• Rated Operational Voltage:230 V
• Operational Voltage:
  • Maximum (Incl. Tolerance) 195 V AC
  • Maximum (Incl. Tolerance) ...253 V AC
• Supply Voltage:230 V
• Rated Frequency (f):50 ... 60 Hz
• Maximum Load Capacity:
  • Resistive load 16 A
  • Inductive Load 4 A
• Maximum Switching Power:
  • 4000 V·A
  • Incandescent 3000 W
  • Fluorescent 1200 V·A
  • Low voltage halogen 2000 V·A
  • Halogen 3000 W
  • Low consumption lamp(CFL) 900 V·A
  • LED 200 V·A
• Power Consumption (@Pcons):1.8 W
• Power Loss:1.8 W
• Power Supply:(-15%..+10%) 230 V AC
• Accuracy:
  • Operating accuracy: ± 1 second/day at 23°C
  • Switching accuracy: ± 5 minutes
• Number of Channels:1
• Tightening Torque:0.3 N·m
• Minimum Switching Time:15 minute [unit of time]
• Contact Type:Change-Over (CO)
• Meter Type:Electromechanical
• Mounting Type:Wall
• Options Provided:With running reserve
• Battery Chemical Composition:Nickel-Metal Hydride
• Battery Life:100 hour
• Battery Type:Button Cell
• Battery Weight:0.004 kg
• Number of Batteries:1
• Connecting Capacity:Solid 4 mm²
• Environmental
• Ambient Air Temperature:
  • Operation -10 ... 45 °C
  • Storage -20 ... 60 °C
• Degree of Protection:Housing IP20
