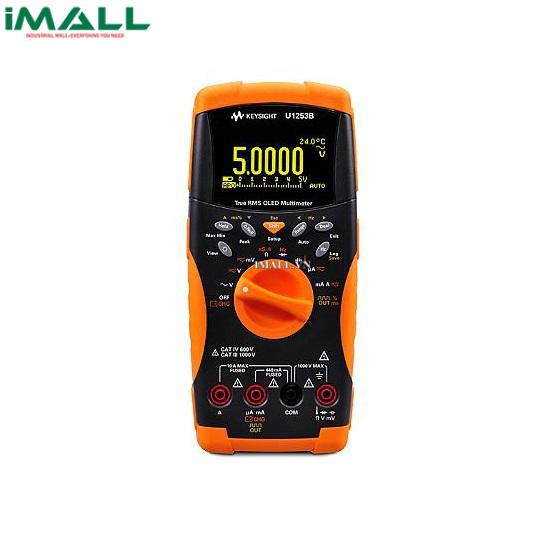

KEYSIGHT U1253B Digital Multimeter

Technical Specifications

• Organic LED
• True RMS:
• Bandwidth: 100khz
• Voltage AC+DC: yes
• Current AC+DC: yes
• Voltage DC:
  •   50.000 mV /0.05%
  •   500.00 mV, 1000.0 mV, 5.0000 V, 50.000 V /0.025%
  •   500.00 V, 1000.0 V /0.03%
• Voltage AC (true RMS):
  •   50.000 mV, 500.00 mV, 1000.0 mV,
  •   5.0000 V, 50.000 V, 500.00 V /0.4%
• Resistance:
  •   500.00 Ω, 5.0000 kΩ, 50.000 kΩ, 50.000 kΩ,/0.05%
  •   5.0000 MΩ /0.1%
  •   50.000 MΩ, 500.00 nS /1%
• Diode: Yes
• Current DC:
  •   500.00 µA, 5000.0 µA /0.05%
  •   50.000 mA, 440.00 mA /0.15%
  •   5.0000 A, 10.000 A /0.3%
• Current AC (True RMS):
  •   500.00 µA, 5000.0 µA, 50.000 mA,
  •   440.00 mA, 5.0000 A, 10.000 A /0.7%
• Capacitance: 0.0101nF-100.00mF /1%
• Temperature type J,K:  K: –200 ~ 1372 ºC, J: –210 ~ 1200 ºC
•  (option)
• Frequency: 1MHz /0.02%
• Dataloging: 100 manual, 200 interval point
• 4-20mA %scale
• Output PWM: 0.5-4.8khz, 0.39% ~ 99.60% /0.005%
• PC connectivity: IR-USB (option)
• Connectivity: IR-to-Bluetooth (option)
• Power supply: Ni-MH Rechargeable battery

Package Includes
