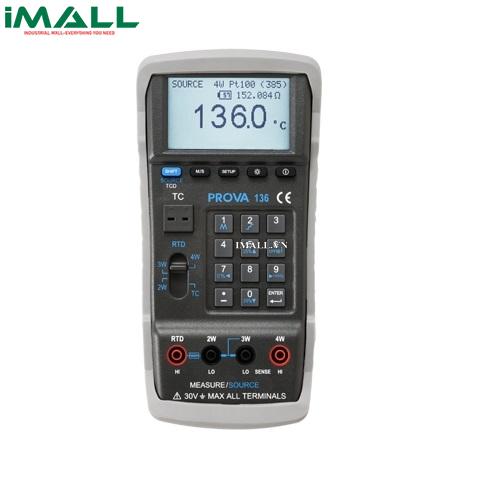

Máy hiệu chuẩn tín hiệu nhiệt độ PROVA 136 (RTD + TC)

Technical Specifications

• High precision and combination of RTD and Thermocouple (TC) calibration
• Source and measure 14 types of RTD and resistance: PT100, PT10, PT50, PT200, PT500, PT1000, Cu, Ni, YSI
• Source and measure 11 types of thermocouples (TC): K, J, E, T, R, S, N, L, U, B, C
• 4W, 3W, and 2W connections for RTD simulation and measurement
• Current calibration of 4 fixed values (100μA, 250μA, 1mA, and 2mA)
• ℃ and ℉ selectable
• Accept wide range of excitation current (0.05mA to 5mA) for RTD simulation
• Individual cold junction compensation (CJC) for simulation and measurement of thermocouples. CJC can be used to fine tune temperature calibration
• Easy 0% and 100% setup and operation
• Easy 25%▲ (up) and 25▼ (down) for temperature calibration
• Individual memory of 0% and 100% setup for different RTD types and thermocouple types
• Auto step and auto ramp for easy linear calibration
• Detection of too low or too high excitation current (LO or HI) from the measurement device
• Warning of exceeding calibrator driving current (IEX)
• Memory of last setup when power off
• Easy numerical keypad for input
• Dot Matrix LCD with backlight
• Very low power consumption of 30mA with backlight off
• 15 minutes smart auto-power-off. 15 minutes timer resets itself when any input changes
• 2 minutes smart auto-backlight-off. 2 minutes timer resets itself when any input changes
