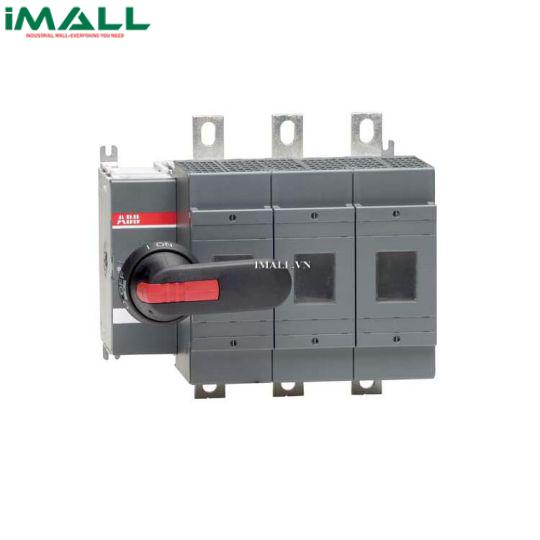

Cầu dao cắt tải ABB OS160GD12P (1SCA115643R1001)

Technical Specifications

• Rated Operational Current AC-21A (Ie):
  • (500 V) 160 A
  • (690 V) 160 A
• Rated Operational Current AC-22A (Ie):
  • (500 V) 160 A
  • (690 V) 160 A
• Rated Operational Current AC-23A (Ie):
  • (500 V) 160 A
  • (690 V) 160 A
• Rated Operational Power AC-23A (Pe):
  • (220 ... 240 V) 45 kW
  • (400 V) 75 kW
  • (415 V) 75 kW
  • (500 V) 90 kW
  • (690 V) 132 kW
• Conventional Free-air Thermal Current (Ith):q = 40 °C 160 A
• Conventional Thermal Current (Ithe):Fully Enclosed 160 A
• Rated Impulse Withstand Voltage (Uimp):8 kV
• Rated Insulation Voltage (Ui):1000 V
• Rated Operational Voltage:Main Circuit 690 V AC
• Rated Short-time Withstand Current Low Voltage (Icw):for 1 s 5 kiloampere rms
• Rated Conditional Short-Circuit Current (Inc):(690 V) 80 kA
