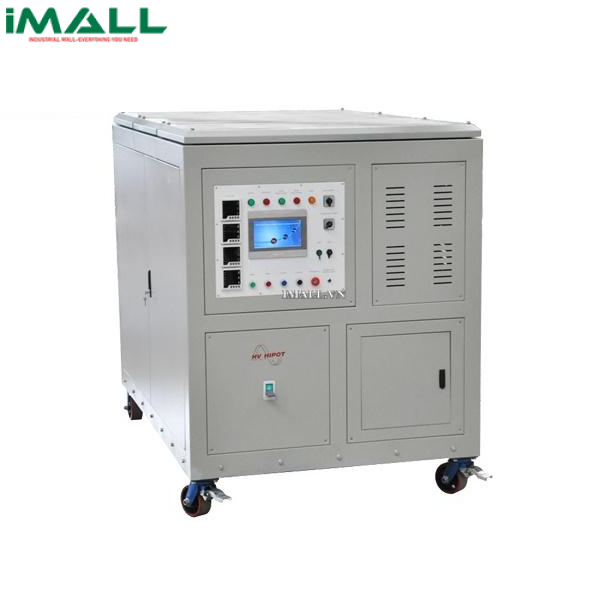

Bộ kiểm tra dòng thứ cấp HV HIPOT GDSL-A-5000 (0~12V; AC0~5000A)

Technical Specifications

• Max. Output current: AC Single-phase 5000A*3 groups
• Circuit mode: Electric voltage regulator with special craft
• Duty cycle: 8 hours
• AC Input
• Phase line: 3P
• Voltage: 208V±10%, 60Hz±2% 3Φ4W
• Input current: 288A
• Output
• Phase line: 3Φ4W
• Voltage: 0~12V Auto switching
• Current:
• - AC0~5000A continuous adjustable, stepless speed regulation;
• - 3-phase can output at one time, can output single-phase, also can split phase output;
• - Tow kinds of output-manual mode and auto mode;
• Rated capacity: 180kVA
• Stabilized current accuracy: Output current≤±0.5%
• Output terminal: Wiring terminal
• Protection: The electronic circuit rapidly detects over voltage, over current, over temperature, phase loss, etc., automatic tripping protection and alarm device, the voltage and the current is zero in non-test status.
• Accuracy
• Source effect: ≤0.3% of rated value
• Time drift: ≤1% of rated value
• Temp. drift: ≤0.04% of rated value/°C
• Load effect: ≤1% of rated value (Output voltage change rate due to the output current change from zero to the rated value.)
• Ripple voltage: ≤1% of rated value+10mV
• Others
• Line regulation: 0.1%
• Load regulation: 0.1%
• Display and settings
• Voltage meter display: True color LCD and digital display instrument (display accuracy: 0.1V display error: ≤1.0%±3 digit)
• Current meter display: True color LCD and digital display instrument (5 digits display, display accuracy: 0.1A display error: ≤1.0%±3 digit)
• Adjustment setting: Current (High precision potentiometer adjustment)
• System
• Efficiency: ≥90%
• Resistance: Withstand voltage insulation resistance AC1800V 1min, 20MW
• Cooling device: Forced fan cooling
• Noise: <60dB (1mm in front of the device)
• CT accuracy: 0.2%
• Protection level: IP20
• Working environment
• Working mode: Long time temperature rise test
• Temperature: -10°C~50°C
• Humidity: 0-90% (non-condensing)
• Altitude: <1500m
• Appearance
• Structure: Integration
• Dimension: Customized
• Weight: Approx. 2.5T
• Temperature inspection: 26-way module
• A class thermocouple: PT100 with 6m line * 26pcs
