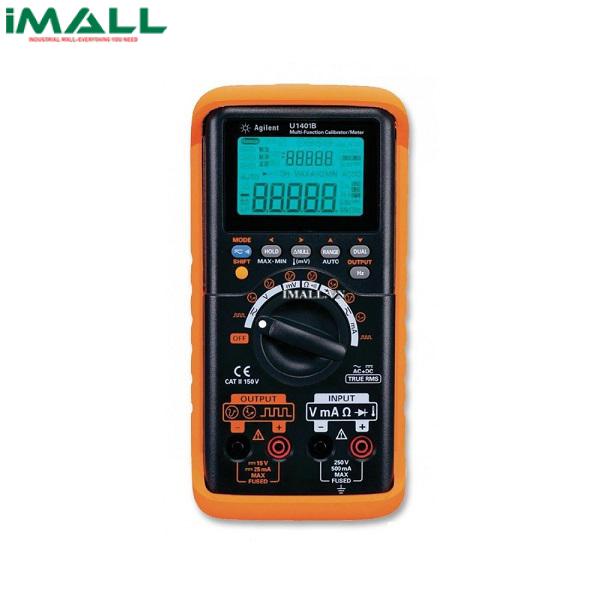

KEYSIGHT U1401B Handheld Multi-function Calibrator/Meter

Technical Specifications

• Measure:
  • DC voltage: 50 mV/0.05%, 500 mV, 5 V, 50 V, 50 V, 250 V /0.03%
    • Resolution: 1 μV, 10 μV, 0.1 mV, 1 mV, 10 mV
  • AC voltage (True RMS): 50 mV, 500 mV, 5 V, 50 V, 250 V / 0.7%
    • Resolution: 1 μV, 10 μV, 0.1 mV, 1 mV, 10 mV
  • DC current: 50 mA, 500 mA/0.03%
    • Resolution: 1 μA, 10 μA
  • AC current: 50 mA, 500 mA /0.6%
    • Resolution: 1 μA, 10 μA
  • Thermocouple type K: –40 oC to 1372 oC /0.3% (option)
    • Resolution: 0.1oC
  • Resistance: 500 Ω, 5 kΩ, 50 kΩ, 500 kΩ, 5 MΩ, 50 MΩ /0.15%
    • Resolution: 0.01 Ω, 0.1 Ω, 1 Ω, 10 Ω, 0.1 kΩ, 1 kΩ
  • Test Diode: Yes
  • Frequency: 100 Hz, 1 kHz, 10 kHz, 100 kHz, 200 kHz /0.02%
    • Resolution: 0.001 Hz, 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz
• Outputs:
  • Constant voltage (CV): +/- 1.5000 V,  +/-  15.000 V /0.03%
    • Resolution: 0.1 mV, 1 mV
  • Constant current (CC):  +/- 25.000 mA /0.03% ( mỗi dải có 15 bước)
    • Resolution:   1 μA
• Square wave output PWM
  • Frequency (Hz): 0.5-4800Hz / 0.005%
    • Resolution:   0.1Hz
  • Duty Cycle (%): 0.39% to 99.60%
  • Pulse Width (ms): 1/Frequency
  • Amplitude (V): 5 V, 12 V, +/-5 V, +/-12 V /2%
    • Resolution:   0.1V
• Power supply: 9.6 V Ni-MH rechargeable
