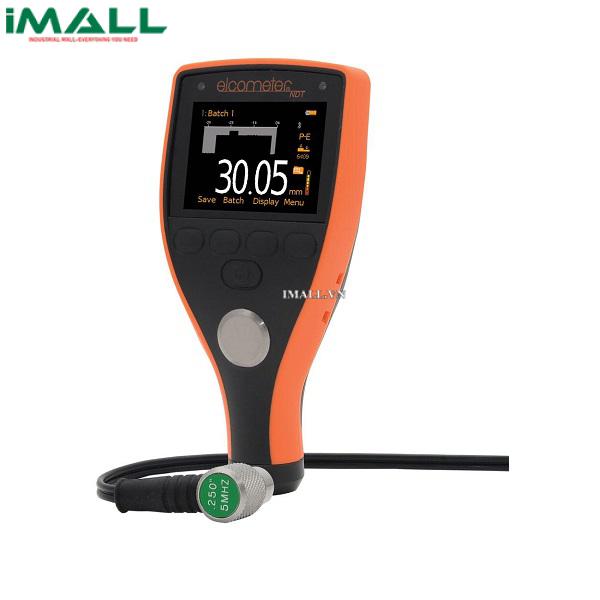

Máy đo độ dày vật liệu bằng siêu âm Elcometer MTG8BDL-TXC (500mm, ghi dữ liệu, đo qua lớp sơn, IP54)

Technical Specifications

• Pulsed-Echo (P-E) measurement Mode
• Pre-calibrated for measuring on steel only
• Tough, impact, waterproof and dust resistant equivalent to IP54
• Measurement Mode: Pulsed Echo (P-E)
• Measurement Rate: 4, 8, 16Hz
• Thickness Range: P-E: 0.63-500mm, E-E: 2.54 - 25.40mm
• Measurement Accuracy: ±1% or ±0.05mm
• Measurement Units: mm or inch, m/s, in/µs
• Selectable Reading Resolution: Lo; ie 0.1mm, 0.01 Inch, 10m/s, or 0.001 in/μs; Hi; ie 0.01mm, 0.001 Inch, 1m/s, or 0.0001 in/μs
• Data Output: USB, bluetooth to PC
• Data logging: yes
• Transducer Probe Type: Dual element
• Battery Type: 2xAA
• Battery Life: Alkaline: 15 hours; Lithium: 28 hours
• Operating Temperature: -10 to 50°C

Package Includes
