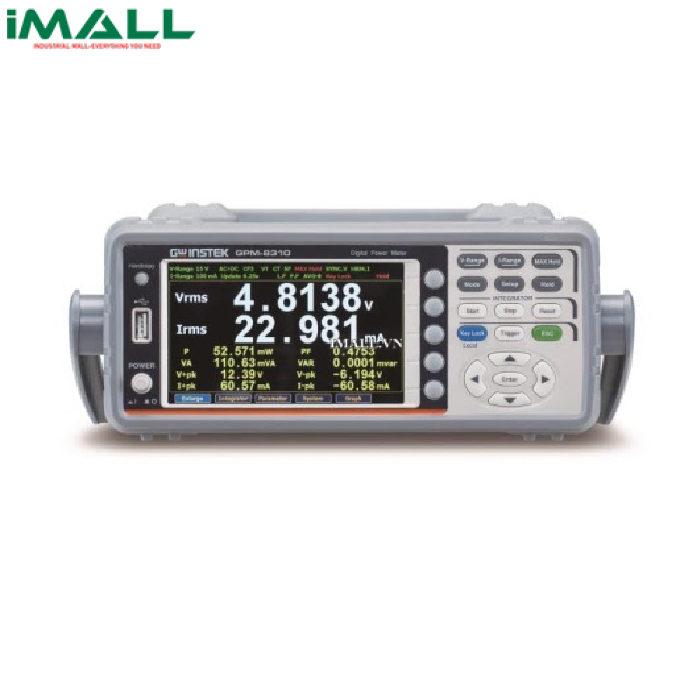

GW INSTEK GPM-8310 Digital Power Meter

Technical Specifications

• Display: 5" TFT LCD
• Wiring/ Mode: 1P2W / AC, DC
• Measurable Parameters:
  • V, Vpk±, I, IpK±, P, Ppk±
  • VA, var, PF, CFV, CFI, DEG
  • VHz, IHz, THDV, THDI, MCR, MATH
  • Wh, Wh±, P(avg), q, q±, q(avg)
  • TIME, V, I
• Integration: WP/ WP+/ WP-/ q/ q+/ q-, Vac, Iac
• Sample Rate: 300kHz
• Input Resistance: A : 5mΩ/500mΩ; V : 2MΩ
• Input Terminal: Rear
• Max input V,A: 1000Vrms, 30A
• Volt Range:
  • 15.000/30.000/60.000/150.000/300.00/600.00V (6 ranges)
• CF: 3 or 6 or 6A (selectable)
• Volt Accuracy (Best):
  • ±0.1% of reading
  • ±0.05% of range
• Power Range: 75.000mW ~ 12.000kW
• Freq Range: DC,0.1Hz~100kHz
• Interface: RS232, USB, GPIB, Option: Digital I/O (DA4)
