Product Details
Manufacturer:
Mitutoyo
Model:

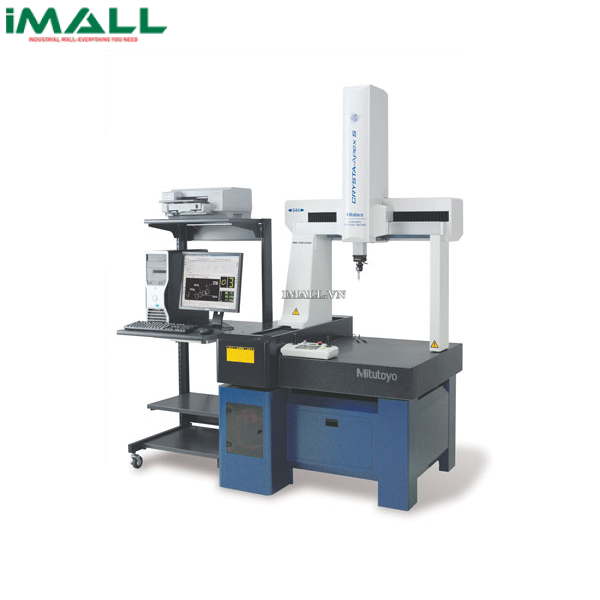

CRYSTA-Apex S 7106
Warranty:
Origin:
-
Technical Specifications
- Measuring range:
- X-axis 700 mm
- Y-axis 1000 mm
- Z-axis 600mm
- Resolution: 0.0001 mm (0.1 μm)
- Guide method: Air bearings on each axis
- Drive speed
- CNC MODE: Drive speed 8 - 300mm/s; max. speed: 519 mm/s
- J/S MODE: 0 - 80mm/s (J/S Mode: High Speed); 0 - 3mm/s (J/S Mode: Low Speed); 0.05 mm/s (J/S Mode: Fine Speed)
- Max. measuring speed: 8 mm/s
- Max. drive acceleration: Each axis: 1,333 mm/s2, max. combined acceleration: 2,309 mm/s2
- Workpiece
- Maximum height: 800 mm
- Maximum mass: 1000 kg
- Mass (including the control device and installation platform): 1951 kg
- Air supply
- Pressure: 0.4 MPa
- Consumption: 60 L/min under normal conditions (air source: 120 L/min)
