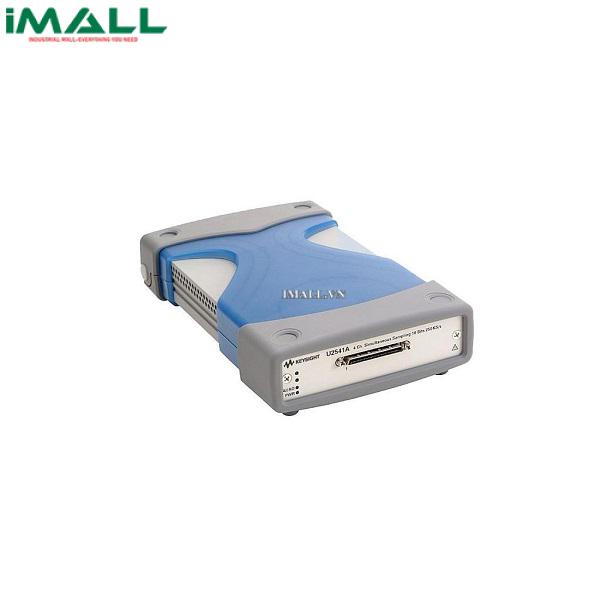

Module thu thập dữ liệu KEYSIGHT U2541A (2MSa/s)

Technical Specifications

• Analog input
• Resolution: 16 bits
• Number of channels: 4
• Maximum sampling rate: 250 kSa/s
• Input impedance: 1 GΩ/100 pF
• Max voltage range: ± 8.0V
• Analog output
• Resolution: 12 Bits
• Number of channels: 2
• Maximum update rate: 1 MSa/s
• Output impedance: 0.1 Ω Typical
• Digital input/output
• Number of bits: 24-bit programmable
• Input voltage range: –0.5 V to +5.5 V
• Output voltage:
  •         VOL = 0.45 V maximum; IOL = 8 mA maximum
  •         VOH = 2.4 V minimum; IOH = 400 μA maximum
• IO connector 68-pin female VHDCI type
• Operating temperature: 0 to 55 °C
• Storage temperature: –20 °C to 70 °C
• Relative humidity: 15% to 85% RH (non-condensing)
