Product Details
Manufacturer:
ABB
Model:
OXB1250E3S2QT
Warranty:
Origin:
-
Technical Specifications
- Rated Operational Current AC-31B (Ie):(200 … 415 V AC) 1250 A
- Conventional Free-air Thermal Current (Ith):q = 40 °C 1250 A
- Rated Impulse Withstand Voltage (Uimp):12 kV
- Rated Insulation Voltage (Ui):1000 V
- Rated Operational Voltage:Main Circuit 200 ... 480 V AC
- Rated Frequency (f):Main Circuit 50-60 Hz
- Rated Short-time Withstand Current Low Voltage (Icw):for 0.1 s 65 kiloampere rms
- Pollution Degree:3
- Handle Type:Direct mounted handle
- Fourth Pole Position:Left and Right Side
- Fourth Pole Type:Switched - Simultaneous Function
- Position of Line Terminals:Supplies on Top - Load on Bottom
- Standards:IEC60947-6-1
- Controller Type:Level 2 (DIP)
- Special Functions:Open style
- Number of Poles:4
- Degree of Protection:Front IP20
- Terminal Type:Bolt
- Transition Type:Delayed
- Environmental
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

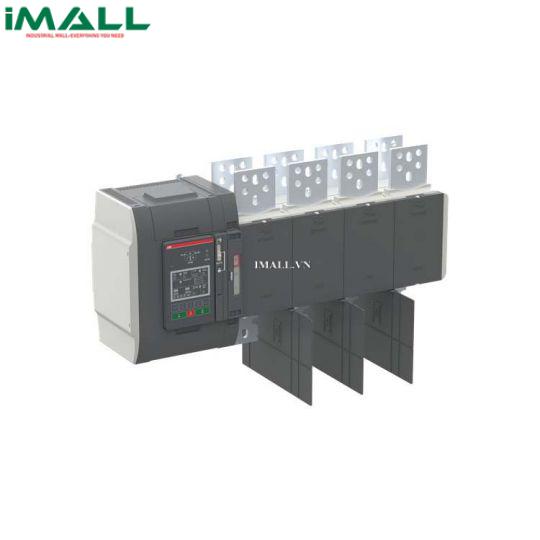

Bộ chuyển nguồn ABB OXB1250E3S2QT (1SCA153611R1001, 1250A)
