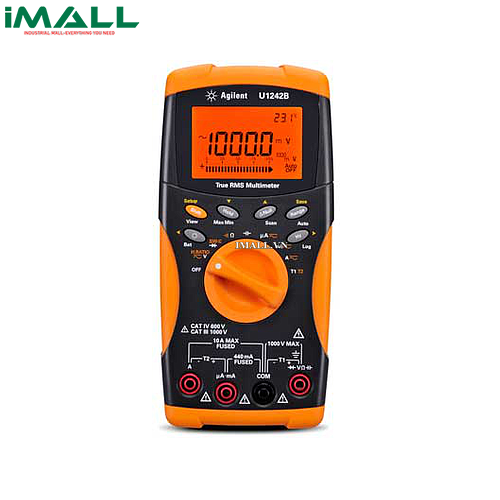

KEYSIGHT U1242B Digital Multimeter

Technical Specifications

• Voltage DC: 1000.0mV, 10.000V, 100.00V, 1000.0V /0.09%
• Voltage AC (True RMS):1000.0mV, 10.000V, 100.00V, 1000.0V /1%
• Current DC: 1000.0μA, 10000μA, 100.00mA, 440.0mA,  10.000A /0.1%
• Current AC (true RMS): 1000.0μA, 10000μA, 100.00mA, 440.0mA,  10.000A /1%
• Resistance: 1000.0Ω, 10.000kΩ, 100.00kΩ, 1000.0kΩ, 10.000MΩ, 100.00MΩ / 0.3-1.5%
• Diode: 1V /0.3%
• Capacitance: 1000.0nF, 10.000μF, 100.00μF,1000.0μF, 10.000mF
• Frequency:100.00Hz, 1000.0Hz, 10.000kHz, 100.00kHz, 1000.0kHz /0.03%
• Thermocouple type(T1/T2, T1-T2): –40 to 1000 oC/ 1%
•  (option)
• Harmonic ratio: 0.0% to 99.9%
• Switch counter: yes
• 4-20mA % Scale: Yes
• Data logging: 100 manual, 200 interval point
• PC connectivity: IR-USB (option)
• Connectivity: IR-to-Bluetooth (option)
• Power supply: Battery 4 x 1.5 V AAA
