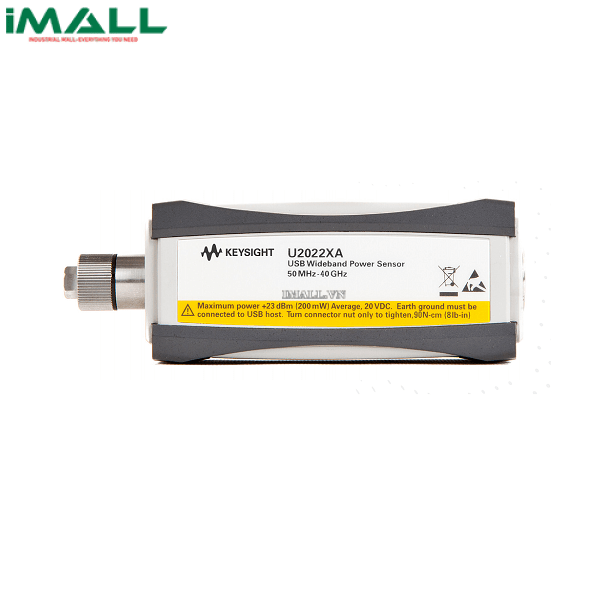

Cảm biến đo công suất KEYSIGHT U2022XA (USB type, 50MHz~40GHz)

Technical Specifications

• Frequency range: 50 MHz to 40 GHz
• Power range:
• Normal mode
  • –30 dBm to 20 dBm (50 MHz to <500 MHz)
  • –35 dBm to 20 dBm (500 MHz to 40 GHz)
  • –35 dBm to 8 dBm (> 40 GHz to 50 GHz)
• Average only mode
  • –45 dBm to 20 dBm (50 MHz to 40 GHz)
  • –45 dBm to 8 dBm (> 40 GHz to 50 GHz)
• Connector type: 2.4 mm (m)
• Inputs/Outputs
• Current requirement: 450 mA max (approximately)
• Recorder output: Analog 0 to 1 V, 1 kΩ output impedance, SMB connector
• Video output: 0 to 1 V, 50 Ω output impedance, SMB connector
• Trigger input: Input has TTL compatible logic levels and uses a SMB connector
• Trigger output: Output provides TTL compatible logic levels and uses a SMB connector
• Remote programming
• Interface: USB 2.0 interface USB-TMC compliance
• Command language: SCPI standard interface commands, IVI-COM, IVI-C driver and LabVIEW drivers
• Maximum measurement speed
• Free run trigger measurement: 25,000 readings per second 1
• External trigger time-gated measurement: 20,000 readings per second
