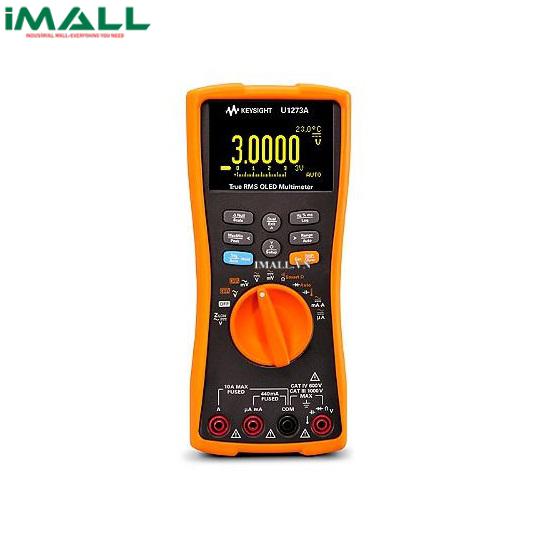

KEYSIGHT U1273A Handheld Digital Multimeter

Technical Specifications

• High Resolution
• True RMS AC, DC
• Display resolution 30,000
• AC bandwidth: 100Khz
• Voltage DC:
  •   30.000mV, 300.00mV, 3.000V,
  •   30.000V, 300.001V, 1000.0V/ 0.05%
• Voltage AC (True RMS):
  •   30.000mV, 300.00mV, 3.000V,
  •   30.000V, 300.001V, 1000.0V / 0.6%
• Voltage AC +DC (True RMS):
  •   30.000mV, 300.00mV, 3.000V,
  •   30.000V, 300.001V, 1000.0V / 0.7%
• Current DC:
  •   300.00 μA, 3000.00 μA, 30.000 mA,300.00 mA /0.2%
  •   3.0000 A, 10.000 A /0.3%
• Current AC (TrueRMS):
  •   300.00μA, 3000.00μA, 30.000mA, 300.00mA /0.6%
  •   3.0000 A, 10.000 A /0.8%
• Current AC+DC (True RMS):
  •   300.00 μA, 3000.00 μA, 30.000 mA,
  •   300.00 mA, 3.0000 A, 10.000 A /0.9%
• Resistance:
  •   30.000Ω, 300.00Ω, 3.0000kΩ, 30.000kΩ, 300.00 kΩ / 0.2%
  •   3.0000MΩ, 30.000MΩ, 100.00MΩ, 300.00 MΩ, 300.00 nS /0.6%
• Diode: Yes
• Capacitance: 1
  •   0.000nF, 100.00nF, 1000.0nF, 10.000μF,
  •   100.00μF, 1000.0μF, 10.000mF /1%
• Frequency: 99.999-999.99Hz / 0.05%
• Thermocouple type: J (-200 to 1372oC), K(-210 to 1202oC)/ 1%
•   (Option type J)
• % Sacle 4-20mA: Yes
• Low pass low filter: Yes
• Z low – low impedance mode: Yes
• Smart Ω: Yes
• OLED display: Yes
• Manual data logging: yes
• PC connectivity: IR-USB (option)
• Connectivity: IR-to-Bluetooth (option)
• Dust and water resistant casing: IP 54
• Power supply: 4 pin AAA
