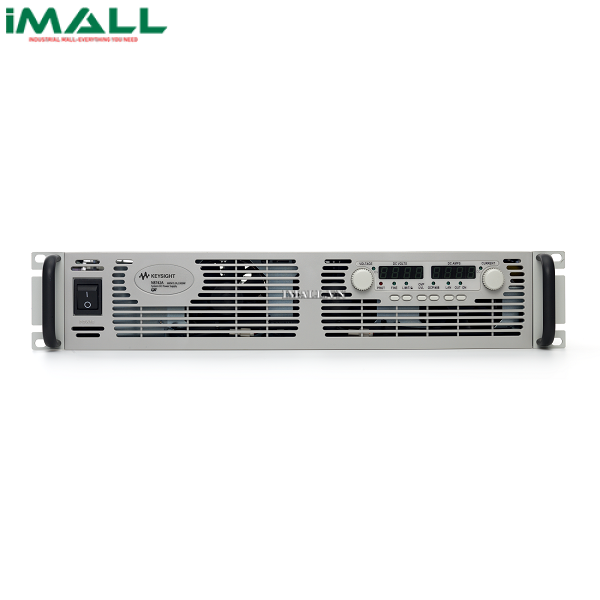

Nguồn DC KEYSIGHT N8756A (40V, 125A, 5000W)

Technical Specifications

• DC output ratings: 40V, 125A, 5000W
• Output ripple and noise: 75 mV p-p; 10 mV rms; 300 mA rms
• Programming accuracy: 0.025%+ 30 mV; 0.1%+ 255 mA
• Measurement accuracy: 0.025%+ 50 mV; 0.1%+ 375 mA
• Command response time: 100 ms
• Over-voltage protection: 2-44 V
• Operating temperature: 0°C to 40°C @ 100% load
• Storage temperature: –20°C to 70°C
• Operating humidity: 30% to 90% relative humidity (no condensation)
• Storage humidity: 10% to 95% relative humidity (no condensation)
• Interface capabilities: GPIB, USB 2.0, 10/100 LAN, LXI

Package Includes
