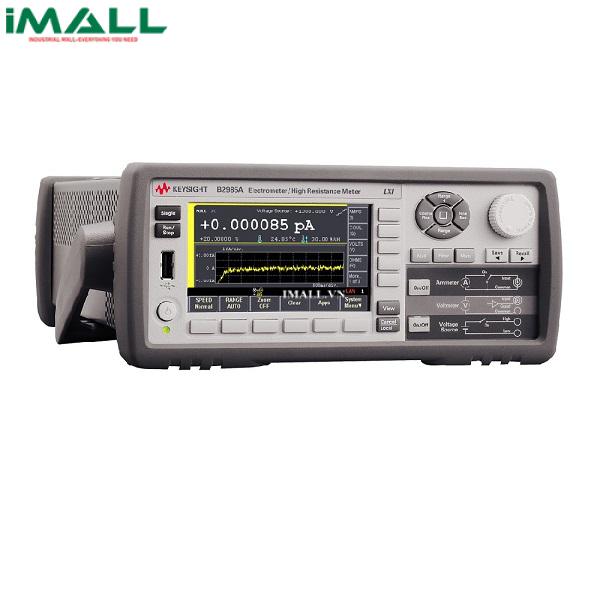

KEYSIGHT B2985A Electrometer/High Resistance Meter

Technical Specifications

• Measurement resolution: 6½ digits
• Current measurement: 0.01 fA - 20 mA
• Minimum range: 2 pA
• Resistance measurement: Up to 10 PΩ
• Voltage measurement: 1 μV - 20 V
• Input resistance: > 200 TΩ
• Charge measurement: 1 fC - 2 μC
• Temperature measurement; Humidity measurement
• Voltage source: Up to ±1,000 V Up to ±1,000 V
• Minimum resolution: 700 μV
• Maximum reading rate: 20,000 rdg/s
• Digital I/O Connector type: DSUB female 9 pins
• Computer interfaces: LXI; USB; GP-IB
• Temperature: 23°C ± 5°C
• Humidity: 30% to 80% RH
• Power supply: 90 V to 264 V, 47 Hz to 63 Hz, 80 VA maximum
