Product Details
Manufacturer:
KIKUSUI

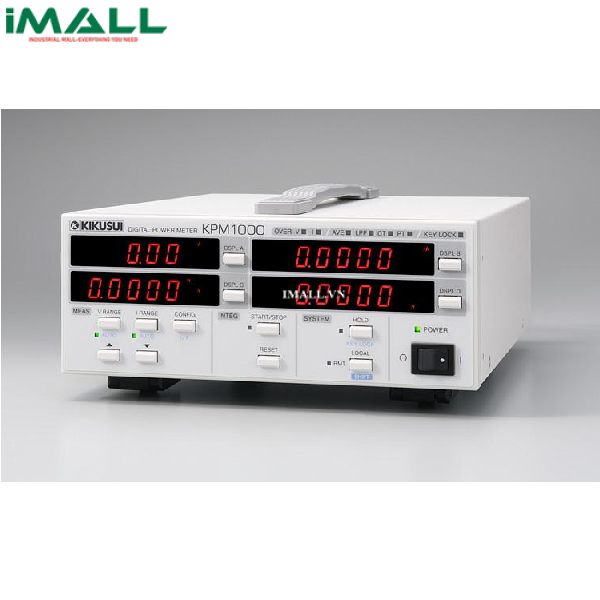

Model:
KPM1000
Warranty:
Origin:
Authentic
Technical Specifications
- Voltage range 150V/300V/Auto range
- Current range 5mA/ 10mA/ 20mA/ 50mA/ 100mA/ 200mA/ 500mA/ 1A/ 2A/ 5A/ 10A/ 20A/ Auto range
- Measuring items Voltage, Current, Active power, Apparent power, Reactive power, Power factor, Phase angle, Frequency, Accumulated current, Accumulated power, Positive direction accumulated power, Negative direction accumulated power, Accumulated time, Voltage crest factor, Current crest factor, Voltage peak, Current peak
- High precision measurement Basic accuracy of the Voltage, Current, Power ±(0.1%reading+0.1%range). Capable with the "Crest Factor 6", it can measure the precise RMS value to be smaller, and the larger waveform for the peak value.
- Controlled by the PC The dedicated application software enables you to control the KPM1000 through the PC as same as panel operation. Furthermore, the long-term data can be acquired just like a data logger.
- Displays 4 items of data No need to switch over the measuring items, it displays four measuring items at the same time. The seven-segment displays provides an excellent visibility from the distance.
- Easy operation Enables to operate by intuition, not rely on the operation manual.
