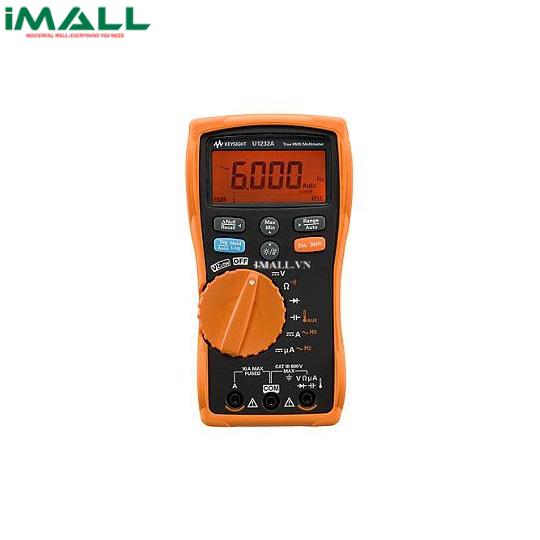

KEYSIGHT U1232A Digital Multimeter

Technical Specifications

• Voltage DC:  600 mV, 6 V, 60V, 600V /0.5%
  •   Resolution:  0.1 mV, 0.001 V, 0.01 V, 0.1 V
• Voltage AC True RMS : 600 mV, 6 V, 60V, 600V /1%
  •   Resolution: 0.1 mV, 0.001 V, 0.01 V, 0.1 V
• Resistance: 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 60 MΩ /0.9%
  •   Resolution:0.1Ω, 0.001kΩ, 0.01kΩ, 0.1kΩ, 0.001MΩ, 0.01MΩ
• Diode: 2 V/0.9%
  •   Resolution: 0.001 V
• Current DC: 60 μA, 600 μA, 6 A,10 A /1.0%
  •   Resolution: 0.01 μA, 0.1 μA, 0.001 A, 0.01 A
• Current AC: 60 μA, 600 μA, 6 A,10 A /1.5%
  •   Resolution: 0.01 μA, 0.1 μA, 0.001 A, 0.01 A
• Capacitance: 1000 nF, 10 μF, 100 μF, 1000 μF, 10 mF /1.9%
  •   Resolution: 1 nF, 0.01 μF, 0.1 μF, 1 μF, 0.01 mF
• Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz /0.1%
  •   Resolution: 0.01 Hz, 0.1 Hz, 1 Hz, 10 Hz
• Built-in:  Flash light
• Zlow - Low impedance mode: yes
• Kết nối máy tính PC: IR-USB (Chọn mua thêm)
• Kết nối từ xa: IR- Bluetooth (Chọn mua thêm)
• Power supply: Battery 4 x 1.5 V AAA
