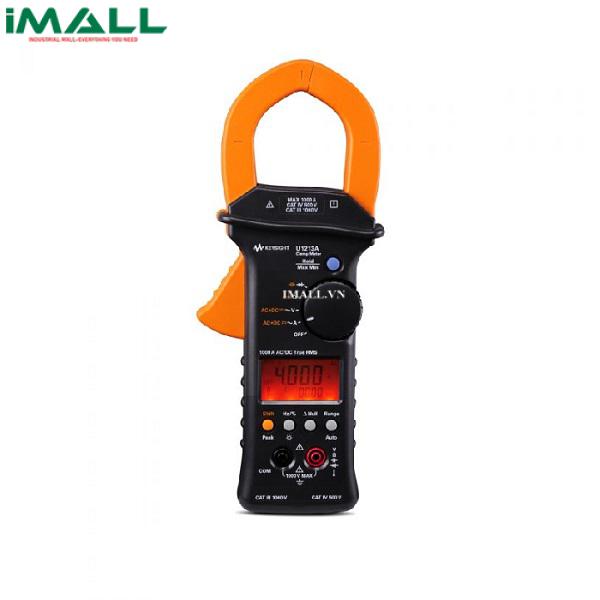

Ampe kìm AV/DC KEYSIGHT U1213A (1000A; True RMS)

Technical Specifications

• True RMS: AC+DC
• Voltage DC: 4 V, 40 V / 0.2%, 400 V, 1000 V /0.5%
• Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V
• Voltage AC: 4 V, 40 V, 400 V, 1000 V /1%
• Resolution: 0.001 V, 0.01 V, 0.1 V, 1 V
• Voltage AC+DC: 4 V, 40 V, 400 V, 1000 V /1.5 %
• Resolution:   0.001 V, 0.001 V, 0.1 V, 1 V
• Resistance: 400 Ω, 4 kΩ, 40 kΩ, 400 kΩ, 4 MΩ, 40 MΩ
• Resolution: 0.1 Ω, 0.001 kΩ, 0.01 kΩ, 0.1 kΩ, 0.001 MΩ, 0.01 MΩ
• Diode: Yes
• Current DC: 40 A, 400 A 1.5%, 1000 A ,2%
• Resolution: 0.01 A, 0.1 A, 1 A
• Current AC: 40 A, 400 A, 1000 A ,2%
• Resolution: 0.01 A, 0.1 A, 1 A
• Current AC+DC: 40 A, 400 A, 1000 A /3.5%
• Resolution: 0.01 A, 0.1 A, 1 A
• Capacitance: 4 μF, 40 μF, 400 μF, 4000 μF
• Resolution: 0.001 μF, 0.01 μF, 0.1 μF, 1 μF
• Temperature type K:–200 - 1372 oC (option)
• Frequency: 99.99 Hz, 999.9 Hz, 9.999 kHz, 99.99 kHz, 999.9 kHz /0.2%
• Resolution: 0.01 Hz, 0.1 Hz, 0.001 kHz, 0.01 kHz, 0.1 kHz
• Power supply: Battery 9V

Package Includes
