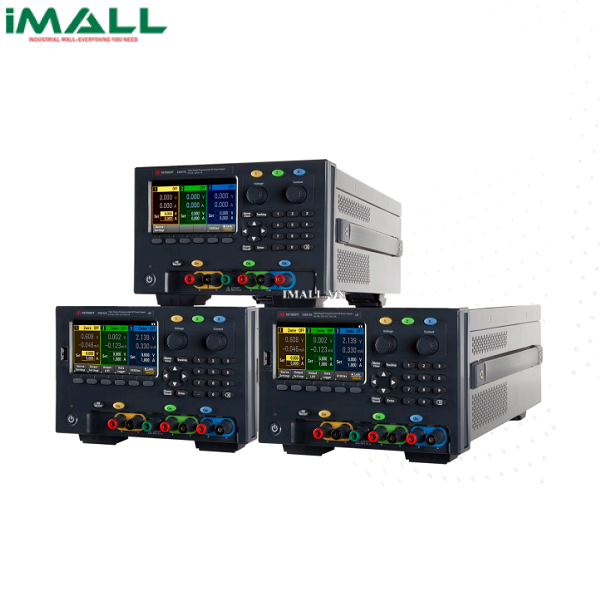

KEYSIGHT E36313A Triple Output Power Supply (6V, 10A & 2X 25V, 2A, 160W)

Technical Specifications

• Power output: 160 W
• Output Rating:
  • Output 1: 0 to 6 V, 0 to 5 A
  • Output 2: 0 to 10 V, 0 to 2 A
  • Output 3: 0 to 10 V, 0 to 2 A
• Ripple & Noise (20 Hz to 20 MHz)
  • Normal Mode Voltage: <350 µVrms/ 2 mV p-p, < 1 mVrms/ 5 mVpp
  • Normal mode current: <4 mA rms, <2 mArms, <1 mArms
• Overvoltage protection (OVP): 0.20% +0.1V & 0.20% +0.4 V
• Command processing time: < 10 ms
• Accuracy 12 months (23 ºC ± 5 ºC)
  • Current 0.05% + 4 mA & 0.04% +3 mA
  • Voltage 0.03% + 3 mV & 0.03% +5 mV
• AC input: AC 100- 230 V, 600 VA
• includes over voltage, over current, and over temperature protection
• Three independent outputs in one instrument saves maintenance cost and bench space
• Display: 4.3-inch LCD color show the voltage and current of all three channels at the same time
• Included accessories: Power cord, output voltage wire, instruction manual
