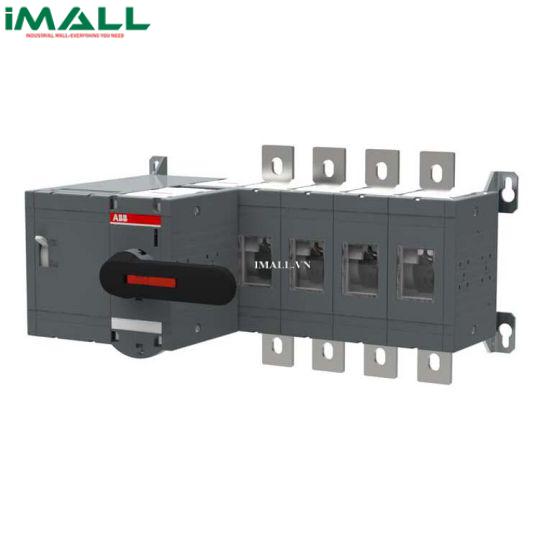

Cầu dao cắt tải ABB OTM630E4M230C (1SCA115357R1001)

Technical Specifications

• Rated Operational Current AC-21A (Ie):
  • (380 ... 415 V) 630 A
  • (500 V) 630 A
  • (690 V) 630 A
  • (1000 V AC) 630 A
• Rated Operational Current AC-22A (Ie):
  • (380 ... 415 V) 630 A
  • (500 V) 630 A
  • (690 V) 630 A
• Rated Operational Current AC-23A (Ie):
  • (380 ... 415 V) 630 A
  • (500 V) 630 A
  • (690 V) 630 A
• Rated Operational Power AC-23A (Pe):
  • (220 ... 240 V) 200 kW
  • (400 ... 415 V) 355 kW
  • (500 V) 400 kW
  • (690 V) 630 kW
• Conventional Free-air Thermal Current (Ith):q = 40 °C 630 A
• Conventional Thermal Current (Ithe):Fully Enclosed 630 A
• Rated Impulse Withstand Voltage (Uimp):12 kV
• Rated Insulation Voltage (Ui):acc. to IEC/EN 60664-1 1000 V
• Rated Operational Voltage:Main Circuit 1000 V
• Rated Short-Circuit Making Capacity (Icm):(690 V) 80 kA
• Rated Short-time Withstand Current Low Voltage (Icw):for 1 s 20 kA
• Rated Conditional Short-Circuit Current (Inc):
  • (800 A fuse, 500 V) 100 kA
  • (800 A fuse, 690 V) 80 kA
• Motor Operational Voltage:220 ... 240 V AC
