Product Details
Manufacturer:
KEYSIGHT
Model:
U8903B
Warranty:
Origin:
-
Technical Specifications
- Crosstalk
- ≤ 20 kHz: ≤ –130 dB + 0.1 μV (typical)
- Square
- Frequency range: 5 Hz to 30 kHz
- Rise time: < 2 μs
- Output
- Range: (balanced) 0 to 45.2 Vpp
- Range: (unbalanced/common) 0 to 22.6 Vpp
- Amplitude accuracy: at 1 kHz ± 1%
- Input specifications
- Frequency range: 10 Hz to 96 kHz
- Coupling: DC, AC
- Input ranges: 320 mVrms to 140 Vrms3 (unbalanced)
- 320 mVrms to 300 Vrms3 (balanced)
- Measurement range: < 1 µVrms 4 ~ 300 Vrms
- Output specifications
- Output connector type
- Balanced XLR (transformer coupling)
- Output impedance
- Balanced: 110 Ω
- Digital analyzer
- Amplitude
- AC level range: < –120 to 0 dBFS
- DC level range: ± 1 FFS
- AC accuracy: ± 0.001 dB (at 1 kHz)
- DC accuracy: ± 0.001 dB
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

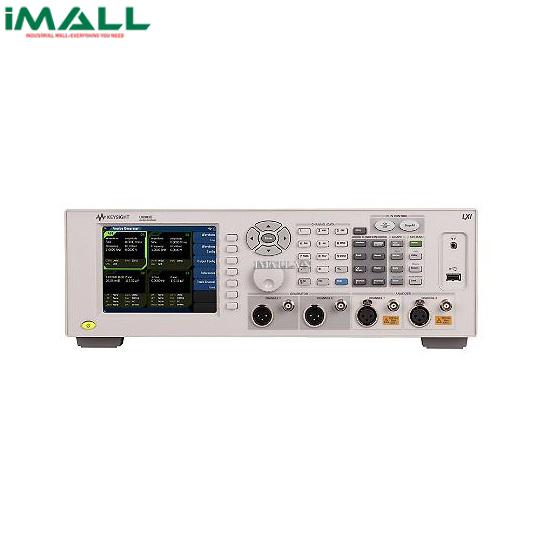

Máy phân tích âm thanh KEYSIGHT U8903B (≤ –130 dB)
