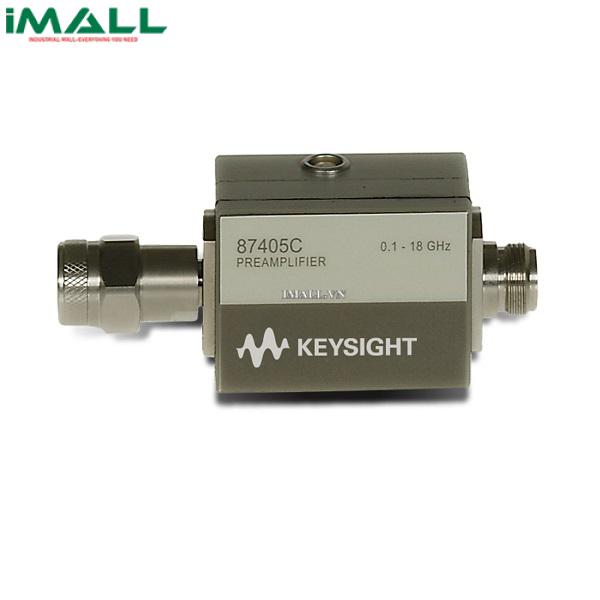

Bộ tiền khuếch đại KEYSIGHT 87405C ( 0.1 ~ 18 GHz)

Technical Specifications

• Frequency range: 100 MHz – 18 GHz
• Gain, S21: 25 dB
• Flatness: (+/-) 1.5 dB
• Noise figure: 7 dB (0.1 - 0.5 GHz) 6 dB (0.5 - 4 GHz) 4.5 dB (4 - 18 GHz)
• Input return loss: 15 dB (0.1 – 4 GHz) 10 dB (4 – 18 GHz)
• Output return loss: 15 dB (0.1 – 4 GHz) 10 dB (4 – 18 GHz)
• Harmonics (@ +4 dBm output power): –30 dBc (typical)
• Impedance: 50 Ohms (typical)
• Survival input power (max): +15 dBm
• Reverse isolation: –50 dB (typical)
• Power dissipation: 2.1 W (typical)
• Third Order Intercept: (TOI) 23 dBm (typical)
• Temperature (operating): –45° C ~ +55° C (storage) –65° C ~ +85° C

Package Includes
