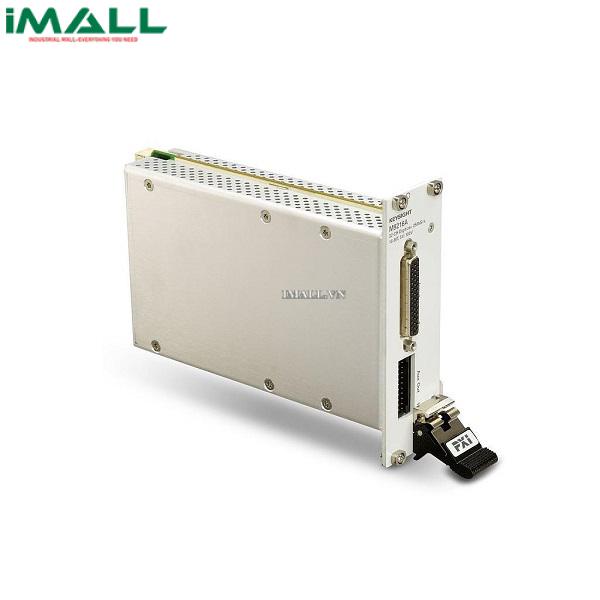

KEYSIGHT M9216A High Voltage Data Acquisition Module (32 CH)

Technical Specifications

• Number of Channels: 8 concurrent dual range channels
• Resolution: 16 bit
• Sampling rate: 250 kS/s
• Analog bandwidth (anti-aliasing filter): 85 kHz
• Input coupling: DC
• Input impedance: 550 kΩ (typical)
• Internal sample memory:
  • 30,000 samples for 5 V and 100 V range per channel (multiple mode)
  • 240,000 samples for 5 V and 100 V range for one channel (single mode)
• Maximum input voltage 100 V
• Maximum input current 0.5 A
• Warm up time: 0.5 hour
• Operating temperature: 0 to 55° C
• Storage temperature: –20° C to 70° C
