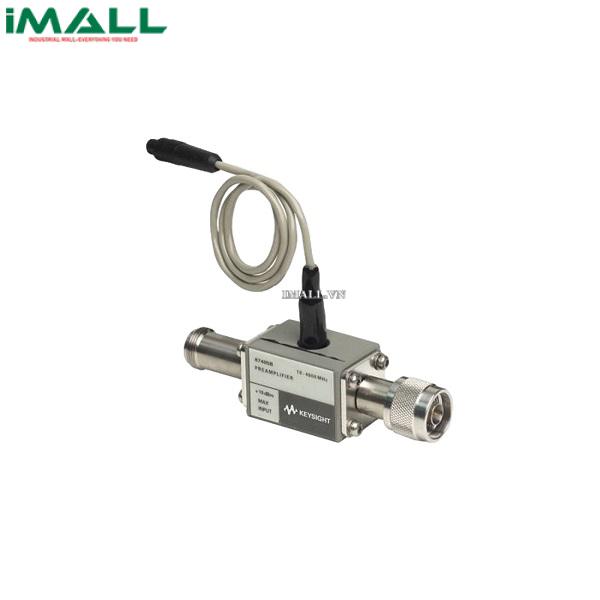

KEYSIGHT 87405B Preampliier (10-4000MHz)

Technical Specifications

• Frequency range: 10 - 4000 MHz
• Small signal gain: 22 - 27 dB min-max
• Gain latness: ±1.5 dB 10 - 4000 MHz
• Output power: 8 dBm at 4 GHz
• (1 dB compression pt.)
• Noise igure: 5 dB 10 - 4000 MHz
• Third order intercept (TOI): 15 dBm typical
• Harmonics: 30 dBc typical (@ +4 dBm output power)
• Input VSWR: 1.5:1 10 - 1000 MHz
  • 1.7:1 1000 - 2000 MHz
  • 2.1:1 2000 - 3000 MHz
  • 2.2:1 3000 - 4000 MHz
• Output VSWR: 1.9:1 10 - 4000 MHz
• Impedance: 50 ohms nominal
• Reverse isolation: 40 dB typical
• Survival input: +10 dBm typical power (max)
• Power dissipation: 1.6 W nominal
• Temperature (operating): 0 to +55 °C (storage) –40 to +70 °C
