Product Details
Manufacturer:
MICROTEST
Model:
6375
Warranty:
Origin:
Đài Loan
Technical Specifications
- Test Frequency:20Hz~200kHz
- Points Of Test Frequency: Continuity
- Basic Accuracy: ± 0.1%
- AC Drive Level: 10mV to 2Vrms (1m Vrms solution)
- DC Drive Level: 0.01V-2V
- Output Impedance: 100Ω
- Frequency trimming resolution: 5 Digits
- Frequency output accuracy: ±0.01%
- AC test speed Max.: 75mS
- DC test speed (Max.): 30mS
- DC Bias Current Source: Option (Model 6220)
- Measured Value Detection Mode: Define upper and lower thresholds according to main and sub parameters
- ESR: Series/Parallel
- Mathematical Mode: Absolute/Percentage
- Test Range: Automatic/Lock
- Indicator: Pass/Fail and Built-in speaker
- Safety: EN61010-1
- Immunity: EN61326-1
- Emissions: EN55022 Class A
- Calibration: Open Circuit / Short Circuit: Avoid the misreading caused by the stray capacitance from kelvin clips and fixtures
- Auto-save when power-off function: When the power is turned off or encounter a power outage, all the data will be saved automatically and recovered when tester system is switched on again
- Power Supply:
- Voltage 90-132Vac or 198-264Vac (selectable)
- Frequency: 47 ~ 63Hz
- Display 800*480 Color Screen, 7" TFT
- Interface: RS-232, GPIB, Handler, USB
- Flash Memory: Built-in flash for storage of 64 groups of Multi-steps setting (Each group contains up to 30 steps)
- Operation: Auto、Manual、RS-232、GPIB、Handler
- Temperature : 10°C to 40°C
- Humidity : 20 ~ 90%
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

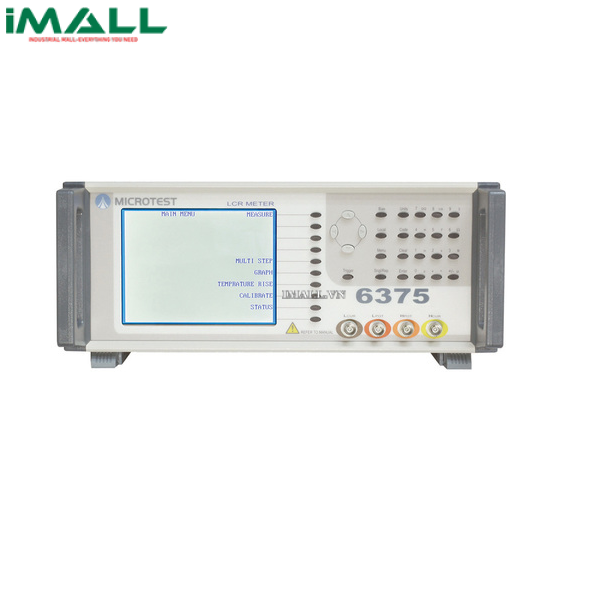

Máy đo LCR để bàn MICROTEST 6375 (20Hz~200kHz)
