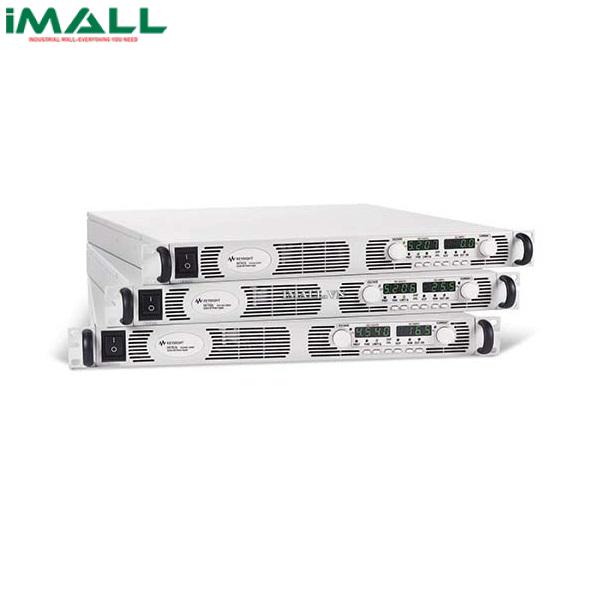

Nguồn DC KEYSIGHT N5771A (300V, 5A, 1500W)

Technical Specifications

• DC output ratings: 300V, 5A, 1500W
• Output ripple and noise: 150 mV p-p; 20 mV rms; 25 mA rms
• Programming accuracy: 0.05%+ 150 mV; 0.1%+ 5 mA
• Measurement accuracy: 0.1%+ 300 mV; 0.1%+ 15 mA
• Command response time: 55 ms
• Over-voltage protection: Range 5–330V; Accuracy 3V
• Operating temperature: 0°C to 40°C @ 100% load
• Storage temperature: –20°C to 70°C
• Operating humidity: 30% to 90% relative humidity (no condensation)
• Storage humidity: 10% to 95% relative humidity (no condensation)
• Interface capabilities: GPIB, USB 2.0, 10/100 LAN, Web server
• AC input:
  • Nominal input: 100 – 240 VAC; 50/60 Hz
  • Input current 750W: 10.5A @ 100 VAC nominal; 5A @ 200 VAC nominal
  • Input current 1500W: 21 A @ 100 VAC nominal; 11A @ 200 VAC nominal
  • Input range: 85 – 265 VAC; 47 – 63 Hz.
