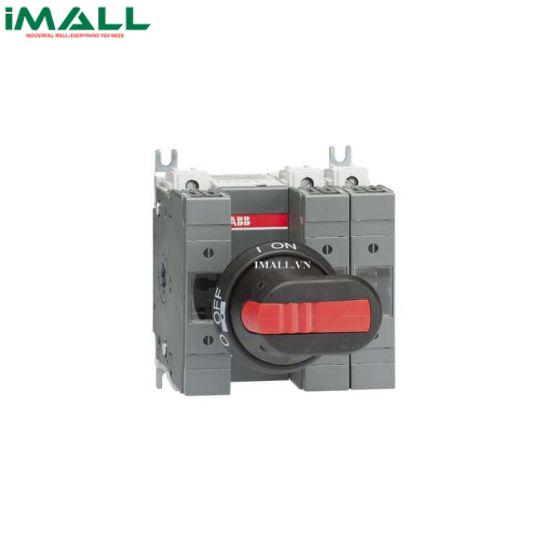

Cầu dao cắt tải ABB OS32GD12P (1SCA114581R1001)

Technical Specifications

• Rated Operational Current AC-21A (Ie):
  • (500 V) 32 A
  • (690 V) 32 A
• Rated Operational Current AC-22A (Ie):
  • (500 V) 32 A
  • (690 V) 32 A
• Rated Operational Current AC-23A (Ie):
  • (500 V) 32 A
  • (690 V) 32 A
• Rated Operational Power AC-23A (Pe):
  • (220 ... 240 V) 7.5 kW
  • (400 V) 15 kW
  • (415 V) 15 kW
  • (500 V) 18.5 kW
  • (690 V) 22 kW
• Conventional Free-air Thermal Current (Ith):q = 40 °C 32 A
• Conventional Thermal Current (Ithe):Fully Enclosed 32 A
• Rated Impulse Withstand Voltage (Uimp):12 kV
• Rated Insulation Voltage (Ui):1000 V
• Rated Operational Voltage:Main Circuit 690 V AC
• Rated Short-time Withstand Current Low Voltage (Icw):for 1 s 2.5 kiloampere rms
• Rated Conditional Short-Circuit Current (Inc):(690 V) 80 kA
