Product Details
Manufacturer:
UNI-T
Model:

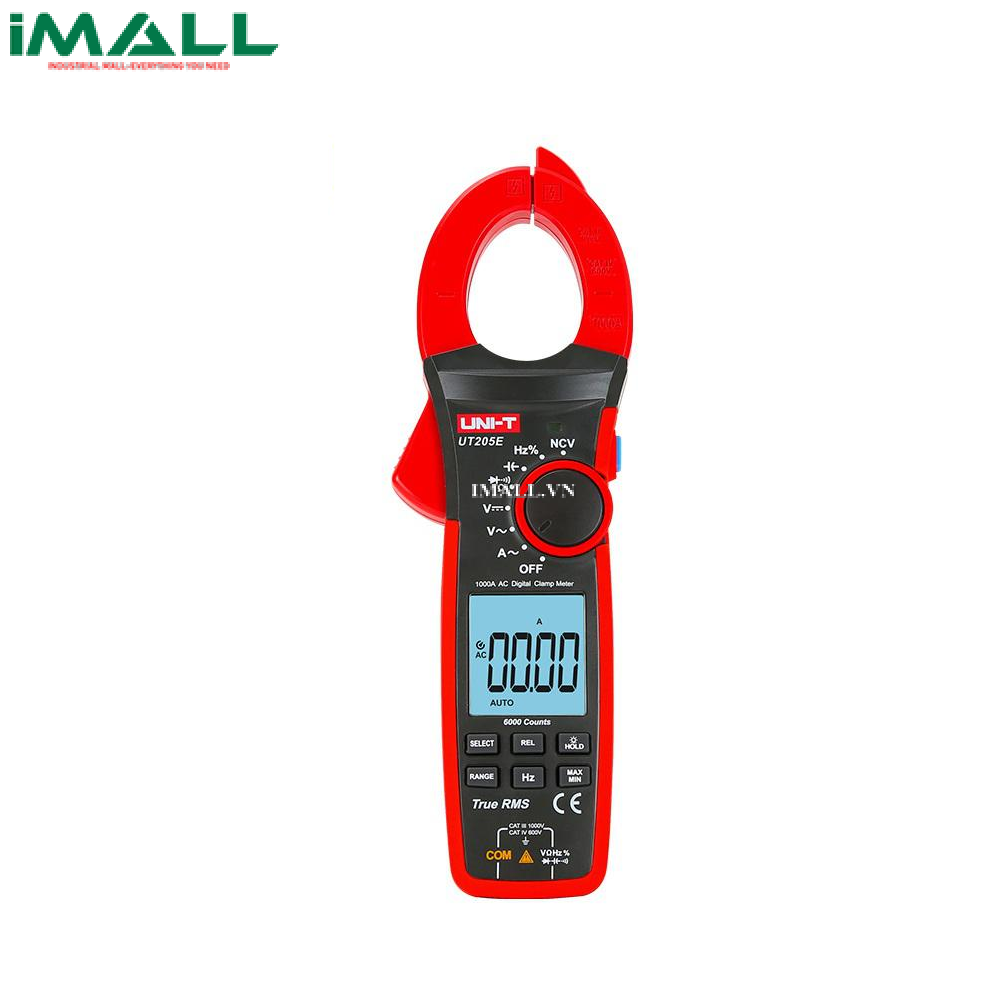

UT205E
Warranty:
Origin:
CHINA
Technical Specifications
| Specifications | Range | UT205E |
| AC current (A) | 1000A | ±(2%+5) |
| AC current frequency response | 50Hz~60Hz | |
| AC voltage (V) | 6V | ±(1.2%+3) |
| 60V/600V/1000V | ±(1%+8) | |
| DC voltage (V) | 600mV | ±(0.8%+3) |
| 6V/60V | ±(0.5%+5) | |
| 600V | ±(0.5%+5) | |
| 1000V | ±(0.5%+5) | |
| AC voltage frequency response | 40Hz~400Hz | |
| Resistance (Ω) | 600Ω | ±(1%+3) |
| 6KΩ/60KΩ/600KΩ | ±(1%+2) | |
| 6MΩ/60MΩ | ±(2%+8) | |
| Capacitance (F) | 60nF | ±(4%+25) |
| 600nF/6μF/60μF/600μF | ±(4%+5) | |
| 6mF/60mF | ±(10%+9) | |
| Low voltage frequency (Hz) | 10Hz~1MHz | ±(0.1%+3) |
| Duty cycle (%) | 10%~90% | ±(2.6%+7) |
| Features | ||
| Display count | 6000 | |
| Jaw opening | 42mm | |
| Current frequency | 50Hz~60Hz | |
| High voltage frequency | 40Hz~400Hz | |
| Auto power off | √ | |
| Continuity test | √ | |
| Auto/Manual range | √ | |
| Low battery indication | √ | |
| Diode test | √ | |
| Relative mode/Data hold | √ | |
| MAX/MIN | √ | |
| Function selection | √ | |
| Flashlight | √ | |
| Wake-up function | √ | |
| Auto power off current: ＜50μA | √ | |
| Input impedance (ACV/DCV) | ≥10MΩ | √ |
| General Characteristics | ||
| Power | 1.5V battery (R03) x 3 | |
| Display | 43mm x 45mm | |
| Product color | Red and grey | |
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
