Product Details
Manufacturer:
AARONIA
Model:

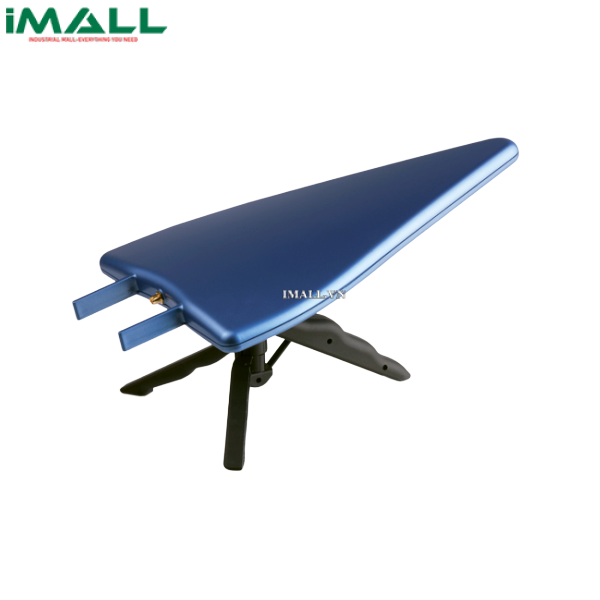

HyperLOG 7025
Warranty:
Origin:
-
Technical Specifications
- Design: Logarithmic-periodic
- Frequency range: 700MHz - 2,5GHz
- Polarisation: linear vertical/horizontal
- Calibration points: 183 (10MHz-steps)
- Max. transmission power: 100W CW (400MHz)
- Gain (typ.) : 4dBi
- VSWR (typ.): <1:2
- Return loss: Better than -10dB
- Antenna factor: 23-34dB/m
- Nominal impedance: 50 Ohms
- Tripod connection: 1/4"
- RF connection: SMA socket (18GHz) or N socket using an adapter
- Weight: 270gr
- Dimensions (L/W/D): (340x200x25) mm
- Included with delivery: HyperLOG 7025 antenna, typical calibration data with up to 533 calibration points (10MHz steps!), aluminum design carrycase, detachable handle with "miniature tripod" mode, Aaronia SMA toolset with over-torque protection
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description
Ăng ten định hướng đo EMC Aaronia HyperLOG 7025 (700MHz-2,5GHz)
