Product Details
Manufacturer:
KEYSIGHT
Model:
34450A
Warranty:
Origin:
Authentic
Technical Specifications
- Fast reading speed of up to 190 readings/sec
- 0.015% DCV accuracy
- Multiple connectivity options – USB 2.0, Serial Interface (RS-232) and GPIB
- 11 measurement functions; DC voltage & current, True RMS AC voltage & current,
- 2- and 4-wire resistance, frequency, continuity, diode test, capacitance and
- temperature
- Ultra-bright OLED with dual display capability
- Up to 50,000 memory points for data logging
- Built-in Histogram function
- With Fluke 45 and Fluke 8808A code compatibility
- Power supply – 100 V/120 V(127 V)/220 V(230 V)/240 V ± 10%
- AC line frequency 45 Hz - 66 Hz and (360 Hz - 440 Hz, 100/120 V operation)
- Automatically sensed at power -on
- Power consumption 45 VA maximum, < 11 W average
- Operating environment Full accuracy to 80% RH for 0 °C to 30 °C (non-condensing)
- Full accuracy to 40% RH for 31 °C to 55 °C (non-condensing)
- Altitude up to 3000 meters
- Storage compliance –40 °C to 70 °C
- Safety compliance – IEC 61010-1:2001/EN 61010-1:2001 (2nd Edition)
- Canada: CAN/CSA-C22.2 No. 61010 -1 -04
- USA: ANSI/UL std No. 61010-1:2004
- Measurement category CAT II, 300 V: CAT I 1000 Vdc, 750 Vac rms, 2500 Vpk transient over voltages, Pollution degree 2
- EMC compliance Certified to IEC61326-1: 2005/EN61326-1:2006
- CISPR 11:2003 / EN 55011:2007 Group 1 Class A
- Canada: ICES/NMB-001:Issue 4, June 2006
- Australia/New Zealand: AS/NZS CISPR 11:2004
- Shock and vibration Tested to IEC/EN 60086-2
- Warm up time 90 minutes
Package Includes
Import Information
HS Code:
Estimated Import Tax:
0,00
Customs Description

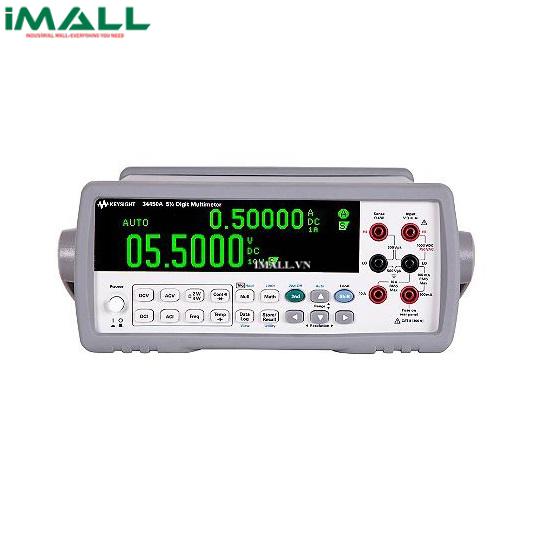

- Keysight 34450A Multimeter (4Hz ~ 8MHz)
