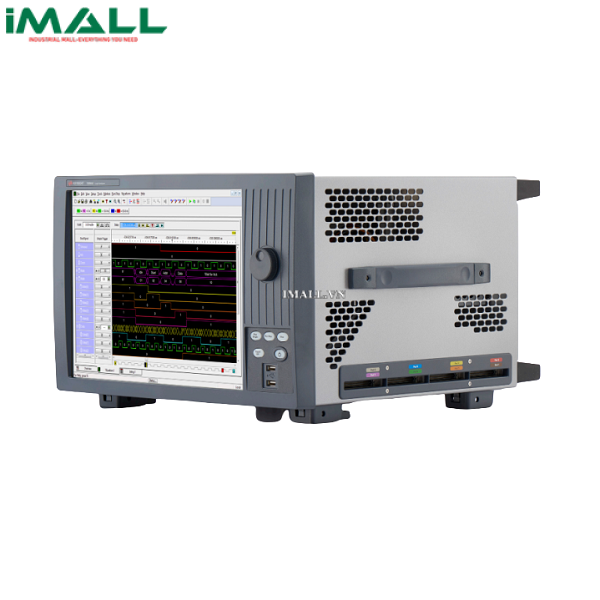

Máy phân tích logic KEYSIGHT 16862A (68 kênh; 2.5 GHz)

Technical Specifications

• Channels: 68
• Max timing sample rate: 2.5 GHz full channel/5.0 GHz half channel
• Quarter channel timing sample rate: 10 GHz (Option T10)
• Max state clock rate: 350 MHz standard, 700 MHz (Option 700)
• Maximum state data rate: 700 Mb/s standard, 1400 Mb/s (Option 700)
• Timing zoom: 12.5 GHz at 256 K deep
• Memory depth: 2 Mb standard; 4 Mb, 8 Mb, 16 Mb, 32 Mb, 64 Mb, 128 Mb optional (2x in half-channel timing, 4x in quarter-channel timing)
• Probe/signal compatibility: U4200A Series single-ended direct connect probes, 90-pin single-ended and differential probes
• Power: 100 to 240 V ± 10% 50/60 Hz; 325 W max
