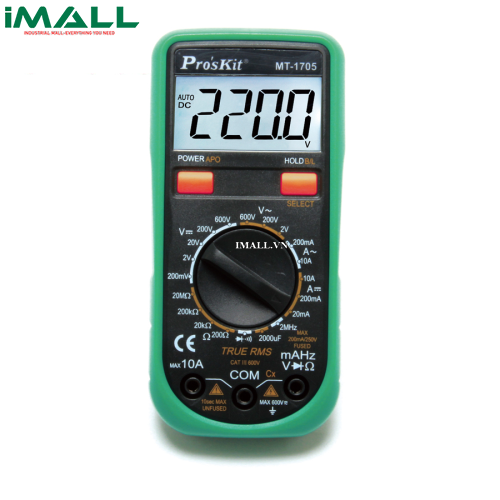

Đồng hồ vạn năng Pro'skit MT-1705 (True-RMS)

Technical Specifications

• DC(V):200mV/2V/20V/200V±(0.5%+3d)600V±(1.0%+10d)
• AC(V)True-RMS:
• 40Hz-200Hz and 200kHz-1kHz sine and triangular wave:
• 2V/200V±(0.8%+5d), 600V±(1.2%+10d)
• 200Hz-1kHz other wave: 2V/200V/600V±(8.0%+15d)
• DC(A):20mA/200mA±(1.2%+8d), 10A±(2.0%+5d)
• AC(A) True-RMS
• 40Hz-200Hz and 200Hz-1kHz Sine and triangular wave
• 200mA±(1.5%+15d) 10A±(3.0%+10d)
• 200Hz-1kHz Other wave 200mA/10A±(8.0%+15d)
• Điện trở(Ω): 200±(0.8%+5d)20K/200K±(0.8%+3d)
• 20M±(1.0%+25d)
• Kiểm tra tần số(Hz):10/100/1k/10k/100k/2M Hz±(1.0%+10d)
• Kiểm tra tụ(uF):20nF/200nF/2uF±(3.5%+20d)
• 20uF/200uF/2000uF±(5.0%+10d)
• Nguồn cấp: 3V(Pin 1.5V AAA*2)
