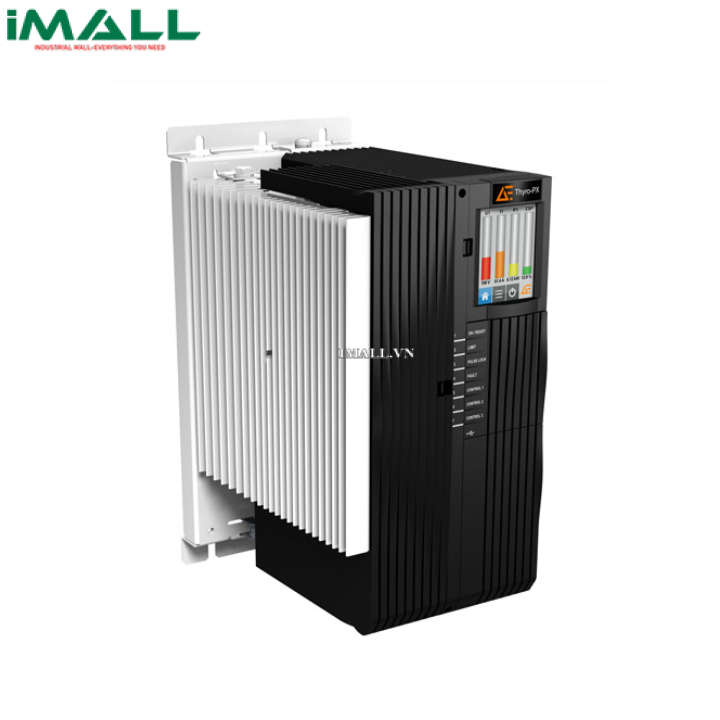

Advanced Energy Thyro-PX Thyro Power Controller (16 ~ 2900A)

Technical Specifications

• Phase Type: 1, 2, and 3-phase power controller
• Accuracy:
  • ±0.5% voltage or current
  • ±1% power
• AC Input Line Voltage Rating:
  • 230 ~ 500 V [-20 ~ +10%]
  • 690 V [-20 ~ +10%]
• Current Range: 16 ~ 2900A
• Frequency: All types, 45 ~ 65 Hz
• Environmental:
  • Ambient Temperature:
    • Up to 35°C (95°F) by external fan cooling (for F types, with integrated fan) with rated current
    • Up to 45°C (113°F) by passive convection cooling with rated current
  • Storage Temperature: -25 ~ +55°C (-13 ~ 131°F)
  • Humidity Class: DIN EN 50178 Tab. 7
• - Communications: Ethernet/IP®, Profibus®, Profinet®, Modbus RTU®, Modbus TCP/IP®, DeviceNET™, CANopen®
